Good day all I hope this message finds you well.
For my question today, I would like to know if it is possible to add a clickable bar in an Azure Workbook through our Azure log analytics workspaces that allows to view the
Avg
Min
Max
50th Percentile
95th Percentile
and so on, I think this would really help us a lot because we are always manually creating workbooks where we summarize and aggregate the avg|min|max etc and a clickable bar at the top similar to what we see in Insight Analytics would be fantastic
. I tried looking at a few options in the chart and column settings in a couple workbooks to try and create links to this but I didn't see the option there or even know what you would call this clickable bar.
Thank you in advance!
Hi, yes that makes it clear...

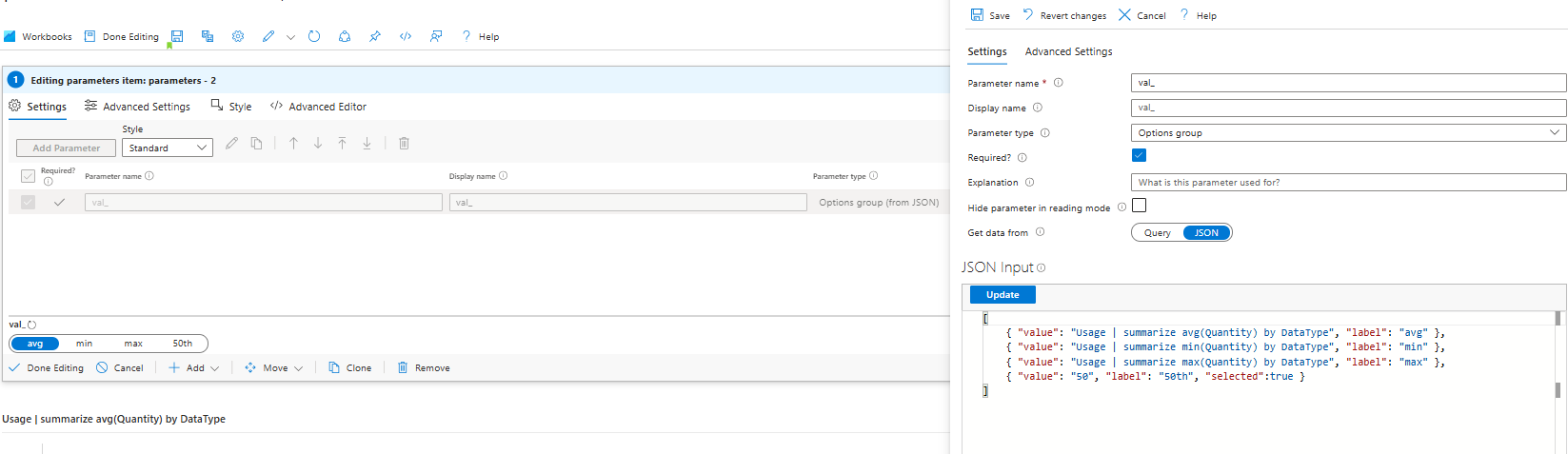

Step 1, set up a parameter and add the queries to match the display values, using an 'Options group':
Step 2:

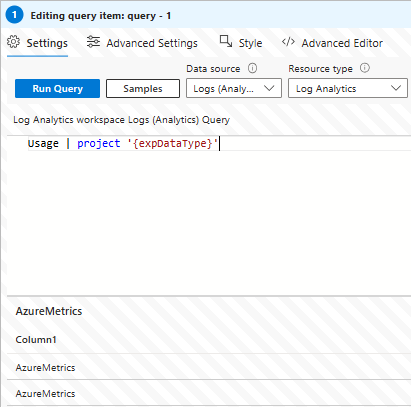

Use the output in the chart query

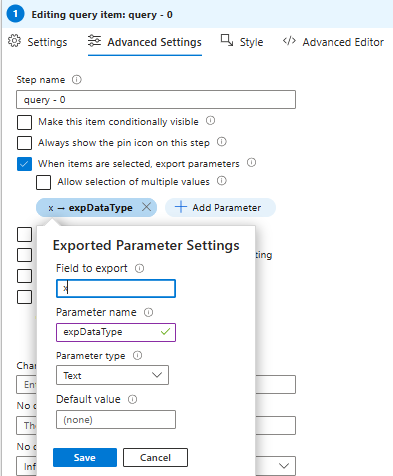

Hi, to enable a selectable chart (I'm using bar chart as an example), you need to allow the fields to be exported, such as the X axis shown here when they are clicked on.
Also I'm not sure I recognise the workbook you are naming, where is that from?
You can then use that exported parameter elsewhere in your workbook, a top tip here is to set it up so that the new data is only shown (conditionally visible) if a Item on the chart has been selected. Like this:

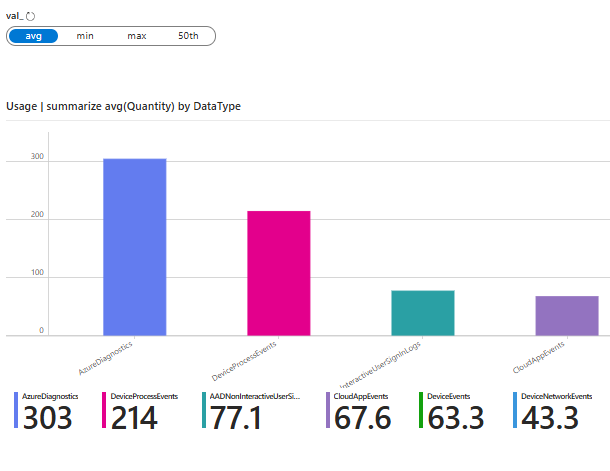

Then you can use that exported value, in other parts of the workbook (this is just a demo use):
Thank you for response but I'm afraid I wasn't being very clear.

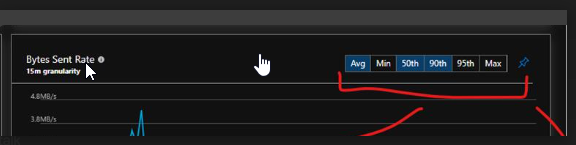

This is the bar I was meaning to add to workbooks, can this be done? (see image below).
It's what can be seen from some screens in Application Insights and I think some other areas but I never found these in workbooks but we code them manually to appear in grids and charts. Something like this at the top of a workbook would be amazing.
Many thanks.

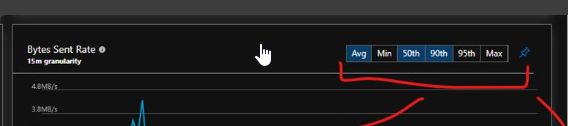

Sorry I wasn't clear about this in my previous message. See image below, this is the bar I am speaking of.
Hope this helps explain it better
Thank you, so the only way is to build the queries within the parameter block of code? well it works but I can imagine that would be clunky for complex queries.
Much appreciated.
