Quickstart: Connect and query a SQL Server instance on an Azure Virtual Machine using SQL Server Management Studio (SSMS)

Applies to: SQL Server

Get started using SQL Server Management Studio (SSMS) to connect to your SQL Server instance on an Azure Virtual Machine and run some Transact-SQL (T-SQL) commands.

Prerequisites

To complete this article, you need SQL Server Management Studio and access to a data source.

• Install SQL Server Management Studio (SSMS)
• SQL Server on an Azure VM

Connect to SQL Virtual Machines

The following steps show how to create an optional DNS label for your Azure VM and then connect with SQL Server Management Studio.

Configure a DNS Label for the public IP address

To connect to the SQL Server Database Engine from the Internet, consider creating a DNS Label for your public IP address. You can join by IP address, but the DNS Label creates an A record that is easier to identify and abstracts the underlying public IP address.

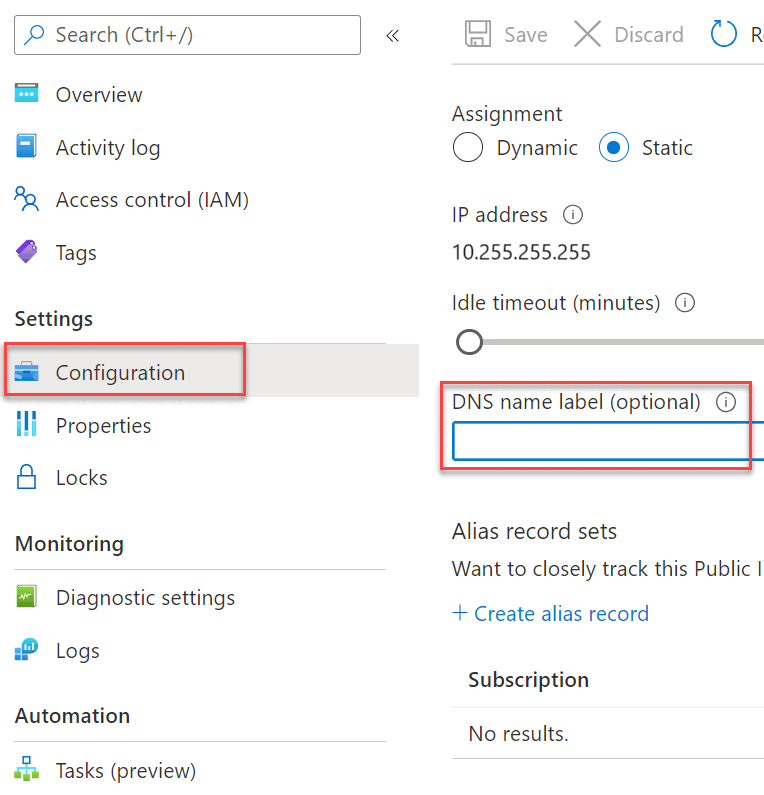

1. Create a DNS Label by selecting Virtual machines in the portal. Select your SQL Server VM to bring up its properties.

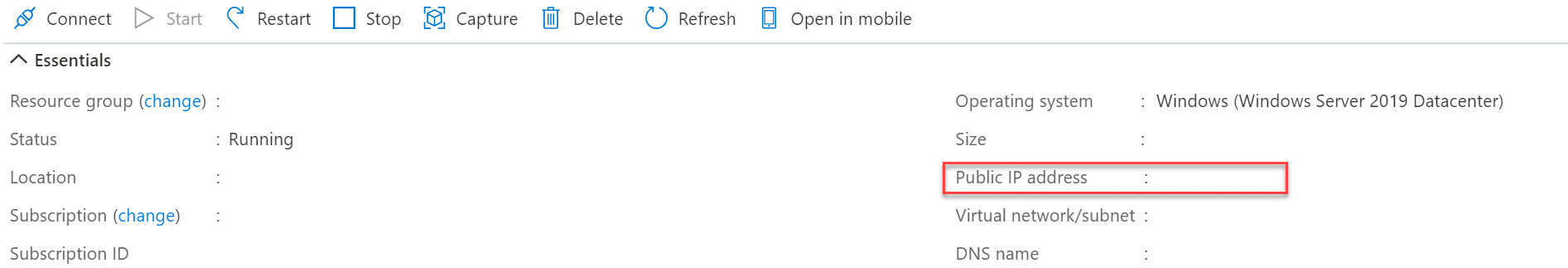

2. In the virtual machine overview, select your Public IP address.



3. In the properties for your Public IP address, expand Configuration.

4. Enter a DNS Label name. This name is an A record that can be used to directly connect to your SQL Server VM by name instead of by IP address.

5. Select the Save button.



Connect

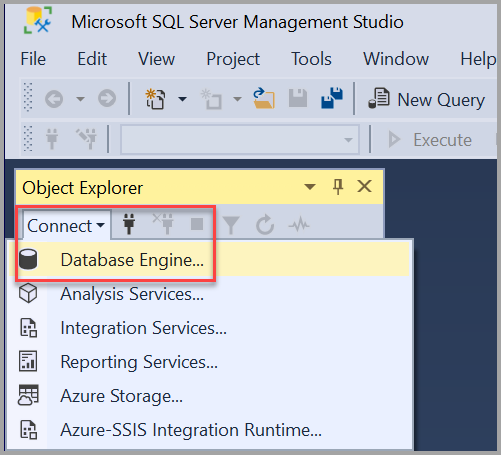

1. Start SQL Server Management Studio. The first time you run SSMS, the Connect to Server window opens. If it doesn't open, you can open it manually by selecting Object Explorer > Connect > Database Engine.

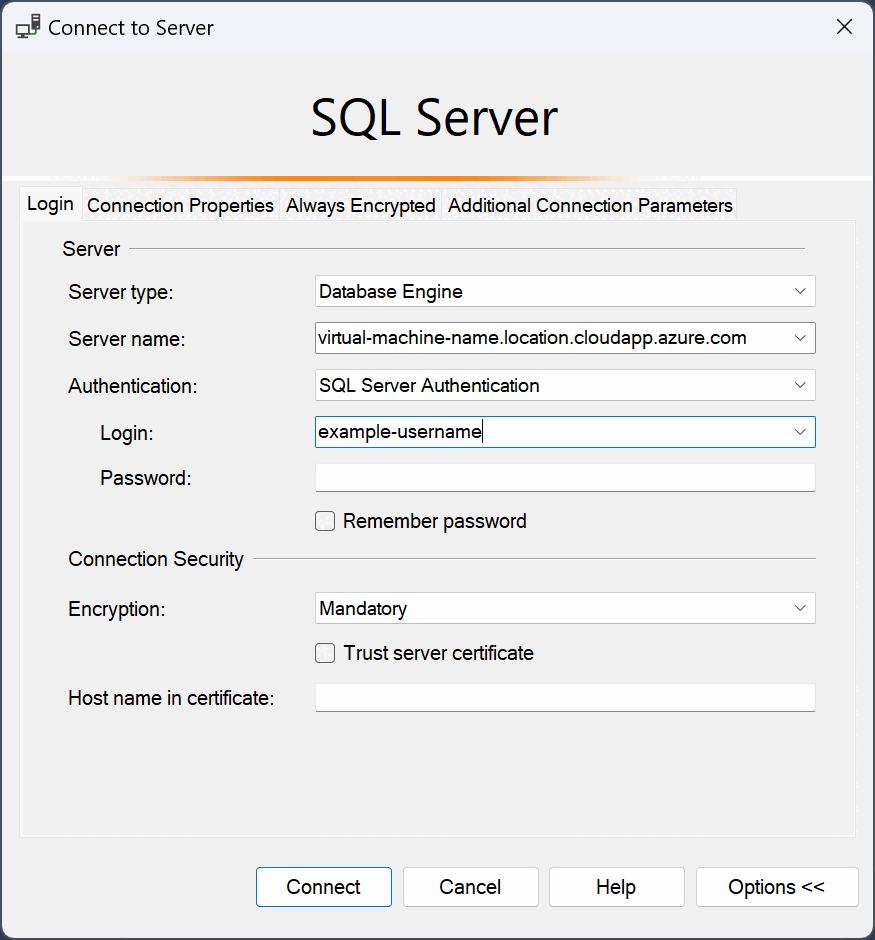

2. The Connect to Server dialog box appears. Enter the following information:

   Setting	Suggested values	Description
   Server type	Database engine	For Server type, select Database Engine (usually the default option).
   Server name	The fully qualified server name	For Server name, enter the name of your SQL Server VM. You can also use the SQL Server VM IP address to connect.
   Authentication	Microsoft Entra - Managed Identity	Use managed identity authentication to connect to SQL Server VM. Using managed identity authentication eliminates the need for developer-managed credentials. Use SQL Server Authentication only when necessary. Windows Authentication isn't supported for SQL Server VM. For more information, see Azure SQL authentication.
   Login	Server account user ID	The user ID from the server account used to create the server. A sign in is required when using SQL Server Authentication.
   Password	Server account password	The password from the server account used to create the server. A password is required when using SQL Server Authentication.
   Encryption 1	Encryption method	Select the encryption level for the connection. The default value is Mandatory.
   Trust server certificate	Trust Server Certificate	Check this option to bypass server certificate validation. The default value is False (unchecked), which promotes better security using trusted certificates.
   Host Name in Certificate	Host name of the server	The value provided in this option is used to specify a different, but expected, CN or SAN in the server certificate.

   ¹ The default value is Mandatory in SSMS 20. Strict (SQL Server 2022 and Azure SQL) encryption should be used for Azure SQL Database and Azure SQL Managed Instance. Strict (SQL Server 2022 and Azure SQL) encryption can be used for SQL Server when the instance has Force Strict Encryption enabled.



3. After you complete all the fields, select Connect.

   You can also modify additional connection options by selecting Options. Examples of connection options are the database you're connecting to, the connection timeout value, and the network protocol. This article uses the default values for all the options.

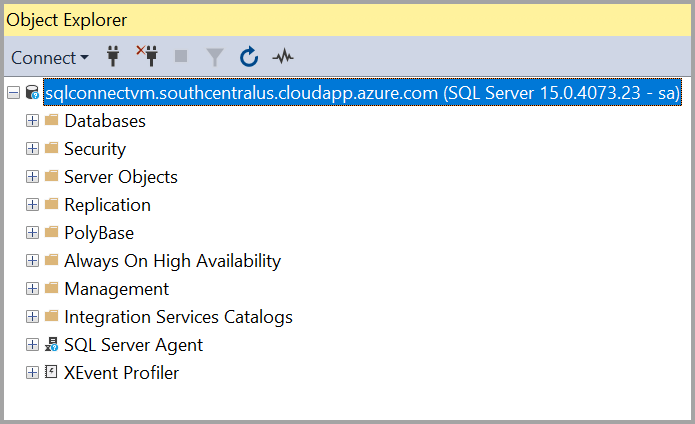

4. To verify that your SQL Server on Azure VM succeeded, expand and explore the objects within Object Explorer where the server name, the SQL Server version, and the username are displayed. These objects are different depending on the server type.



Troubleshoot connectivity issues

Although the portal provides options to configure connectivity automatically, knowing how to manually configure connectivity is useful. Understanding the requirements can also aid troubleshooting.

The following table lists the requirements to connect to SQL Server on Azure VM.

Create a database

Create a database named TutorialDB by following the below steps:

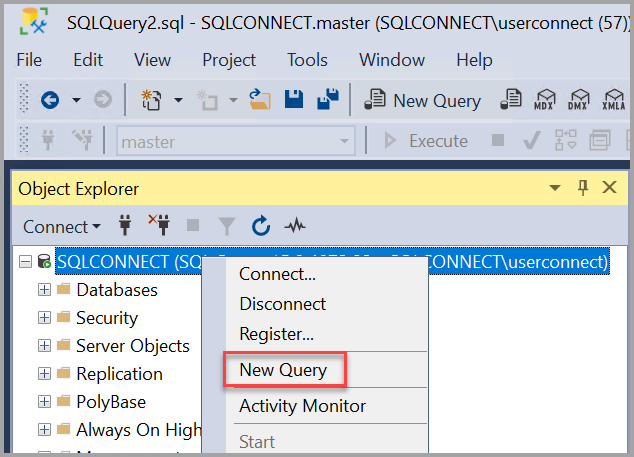

1. Right-click your server instance in Object Explorer, and then select New Query:



2. Paste the following T-SQL code snippet into the query window:

   IF NOT EXISTS (
       SELECT name
       FROM sys.databases
       WHERE name = N'TutorialDB'
   )
   CREATE DATABASE [TutorialDB];
   GO

   ALTER DATABASE [TutorialDB] SET QUERY_STORE = ON;
   GO

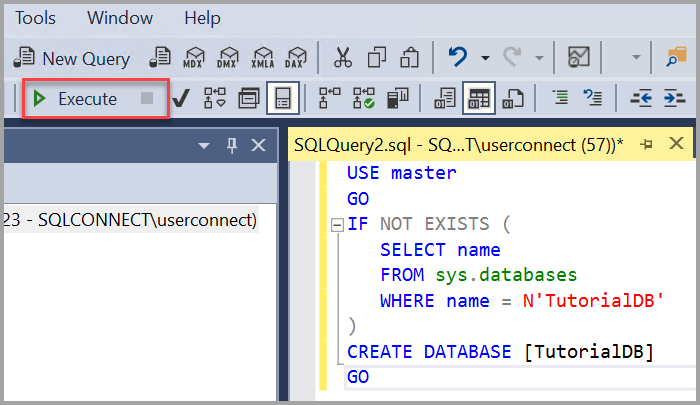

3. Execute the query by selecting Execute or selecting F5 on your keyboard.



   After the query is complete, the new TutorialDB database appears in the list of databases in Object Explorer. If it isn't displayed, right-click the Databases node, and then select Refresh.

Create a table in the new database

In this section, you create a table in the newly created TutorialDB database. Because the query editor is still in the context of the master database, switch the connection context to the TutorialDB database by doing the following steps:

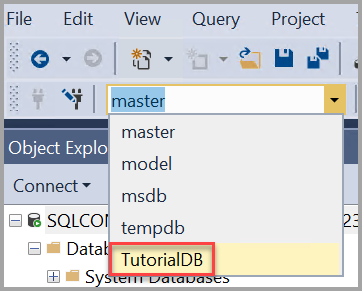

1. In the database dropdown list, select the database that you want, as shown here:



2. Paste the following T-SQL code snippet into the query window:

   USE [TutorialDB]
   GO

   -- Create a new table called 'Customers' in schema 'dbo'
   -- Drop the table if it already exists
   IF OBJECT_ID('dbo.Customers', 'U') IS NOT NULL
       DROP TABLE dbo.Customers
   GO

   -- Create the table in the specified schema
   CREATE TABLE dbo.Customers (
       CustomerId INT NOT NULL PRIMARY KEY, -- primary key column
       Name NVARCHAR(50) NOT NULL,
       Location NVARCHAR(50) NOT NULL,
       Email NVARCHAR(50) NOT NULL
   );
   GO


3. Execute the query by selecting Execute or selecting F5 on your keyboard.

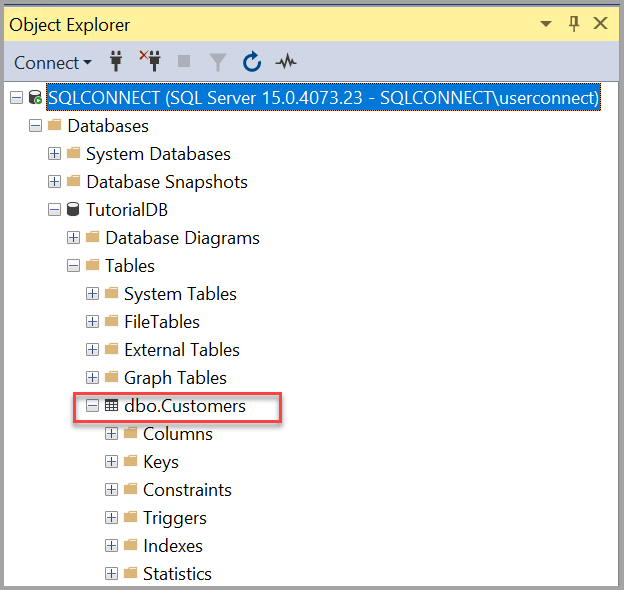

After the query is complete, the new Customers table is displayed in the list of tables in Object Explorer. If the table isn't displayed, right-click the TutorialDB > Tables node in Object Explorer, then select Refresh.

Insert rows into the new table

Now let's insert some rows into the Customers table that you created. Paste the following T-SQL code snippet into the query window, and then select Execute:

-- Insert rows into table 'Customers'
INSERT INTO dbo.Customers (
    CustomerId,
    Name,
    Location,
    Email
)
VALUES
    (1, N'Orlando', N'Australia', N''),
    (2, N'Keith', N'India', N'[email protected]'),
    (3, N'Donna', N'Germany', N'[email protected]'),
    (4, N'Janet', N'United States', N'[email protected]')
GO

Query the table and view the results

The results of a query are visible beneath the query text window. To query the Customers table and view the rows that were inserted, follow these steps:

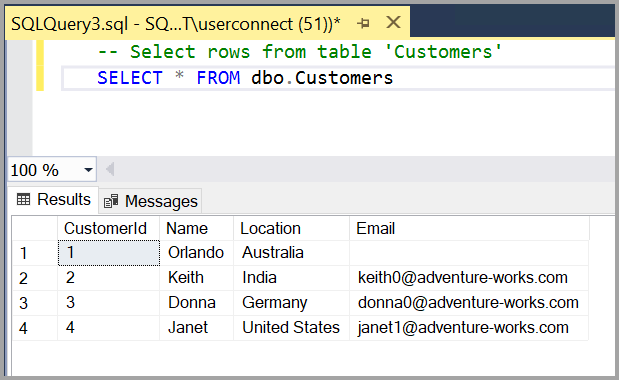

1. Paste the following T-SQL code snippet into the query window, and then select Execute:

   -- Select rows from table 'Customers'
   SELECT * FROM dbo.Customers;


   The query results are displayed under the area where the text was entered.

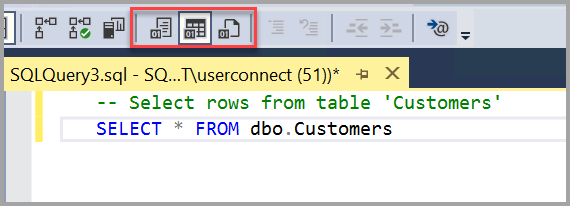

   You can also modify the way results are presented by selecting one of the following options:



   • The first button displays the results in Text View, as shown in the image in the next section.
   • The middle button displays the results in Grid View, which is the default option.
   • The third button lets you save the results to a file whose extension is .rpt by default.

Verify your connection properties by using the query window table

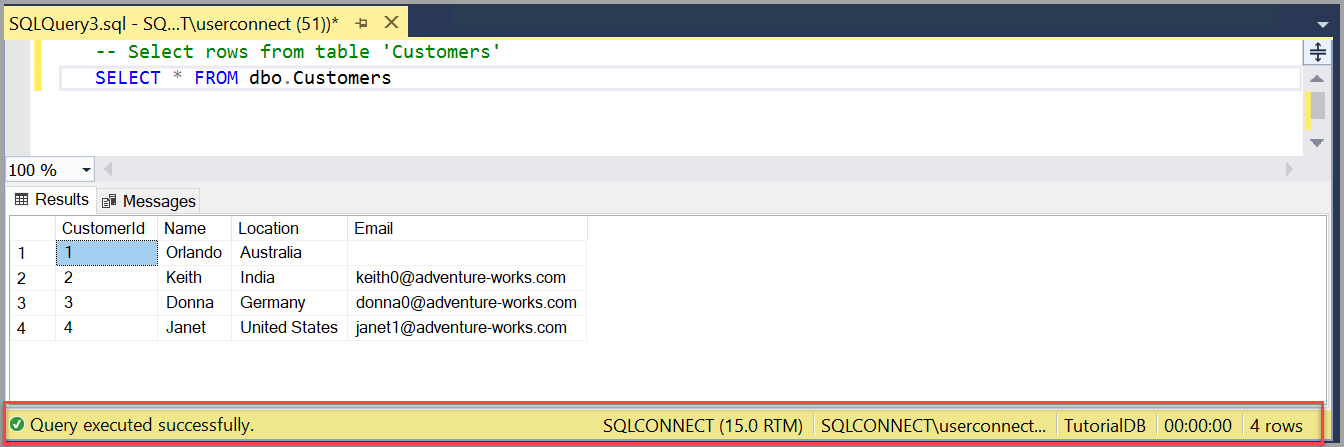

You can find information about the connection properties under the results of your query. After you run the previously mentioned query in the preceding step, review the connection properties at the bottom of the query window.

• You can determine which server and database you're connected to, and your username.

• You can also view the query duration and the number of rows the previously executed query returns.



Additional tools

You can also use Azure Data Studio to connect and query SQL Server, an Azure SQL Database, and Azure Synapse Analytics.
