Use modern themes in model-driven apps

Users of model-driven apps with the modern, refreshed look for model-driven apps enabled experience updated styling aligned to the Microsoft Fluent 2 design system. Because this modern refreshed look comes with a new theming system, classic theming isn't honored; however, makers can modify the colors used by the app to help align with their organizational branding for users who have enabled the modern, refreshed look. In this article, you learn about the styling overrides available with the modern, refreshed look and how to implement them for your organization.

Modify the app theme

[This topic is pre-release documentation and is subject to change.]

With the modern, refreshed look enabled in the app, makers can create a custom theme that helps align to their organizational branding. With a custom theme you can change the app header, hyperlinks, lookups, primary buttons, active tab indicators, row selection, and hover effects. The custom theme also lets you change the font that is used in the application. To accomplish this, you encapsulate the desired theme information into an XML resource, use an app setting to point to this web resource, and then verify the new modern theme matches your expectations.

Overview of the custom theme XML resource

The first step to creating a custom modern theme is to create an XML file with your desired theme parameters, with one or more of the following attributes defined inside a CustomTheme tag.

• BasePaletteColor – The seed color (HEX code) used as a basis to generate a 16-slot color palette for the theme.
• LockPrimary – A boolean that determines how the selected seed color is used to generate the 16-slot color palette.
  • False (Default): The palette is optimized for accessibility, but doesn't guarantee the seed color will appear in any slot of the generated palette. This is the default setting. Use the Fluent theme generator to preview the generated palette based on your selections for basePaletteColor, vibrancy, and hueTorsion.
  • True: The seed color is placed in primary (middle) slot of the palette. The remaining colors are generated by making the colors incrementally lighter on one side and darker on the other side. The generated palette might not meet contrast ratio accessibility requirements.
• Font – The font for your custom theme. The font being rendered by the custom theme is dependent on the browser and target machine’s ability to show that font.
• Vibrancy – An optional parameter that impacts the muteness or brightness of the palette, especially the lighter colors. The allowed values are between -100 and 100, with a default value of 0. This option is only applicable when lockPrimary="true".
• HueTorsion – An optional parameter that impacts the tint, shade, or tone of the palette, especially the lighter colors. The allowed values are between -100 and 100, with a default value of 0. This option is only applicable when lockPrimary="true".

Override the palette

Overriding individual slots in the theme palette provides the creator with full control over the slot colors, which is particularly useful when additional modifications are required beyond the standard theme parameters mentioned above. To override a specific slot, assign a value to the desired slot by its name. For instance, you can specify the HEX code for darker70, primary, or lighter10 to tailor the appearance precisely to your preference. Setting values for all 16 slots completely overrides all the palette options described in the previous section, allowing for a highly customized and unique color scheme.

The slot names for the palette from darkest to lightest are: darker70, darker60, … <>, darker10, primary, lighter10, lighter20, …, lighter80. Refer to the Fluent theme designer to find out how these slots are generally used in Fluent controls.

Example XML for a custom theme

As an example, this XML specifies a custom theme that is green with a different font.

<CustomTheme
    basePaletteColor="#00FF00"
    vibrancy="0"
    hueTorsion="-50"
    font="'GreatVibes', cursive"
/>

This XML specifies a custom theme using the alternate palette generation algorithm with an override for a single slot.

<CustomTheme
    basePaletteColor="#00FF00"
    lockPrimary="false"
    font="'GreatVibes', cursive"

    lighter70="#FFFFFF"
/>

Modify the app header colors

Makers can customize the styling of the app header to deviate from the app theme. This can be done by extending the XML created for the custom modern theme with one or more of the following attributes defined inside an AppHeaderColors tag.

• Background – The background color of the app header. This element must be defined for any changes to take effect.
• Foreground – The text color of the app header. If this isn't specified, the system attempts to calculate an appropriate color that has sufficient contrast to the provided background color.
• BackgroundHover – The background color of buttons on the app header when they're hovered over. If no value is specified, the system calculates a color based on the background color.
• ForegroundHover – The text color of buttons on the app header when they're hovered over. If no value is specified, the system attempts to calculate an appropriate color that has sufficient contrast to the backgroundHover color.
• BackgroundPressed – The background color of buttons on the app header when they're pressed. The defaulting logic is the same as backgroundHover.
• ForegroundPressed – The text color of buttons on the app header when they're pressed. The defaulting logic is the same as foregroundHover.
• BackgroundSelected – The background color of buttons on the app header when they're selected. The defaulting logic is the same as backgroundHover.
• ForegroundSelected – The text color of buttons on the app header when they're selected. The defaulting logic is the same as backgroundHover.

Example XML for a modern theme

As an example, this XML extends the green custom theme with a black app header. For optimal usability, we recommend specifying different color values for each interaction state.

<CustomTheme
    basePaletteColor="#00FF00"
    vibrancy="0"
    hueTorsion="-50"
    font="'GreatVibes', cursive"
>
  <AppHeaderColors
    background="#000000"
    foreground="#FFFFFF"
    backgroundHover="#313131"
    foregroundHover="#FFFFFF"
    backgroundPressed="#494949"
    foregroundPressed="#FFFFFF"
    backgroundSelected="#717171"
    foregroundSelected="#FFFFFF"
  />
</CustomTheme>

Create the web resource

1. Using a text or XML editor, save the XML that is used to create the web resource. Example XML for a modern theme

2. Sign into Power Apps.

3. Select Solutions on the left navigation pane, and then create a New solution.

4. Select New > More > Web resource.

5. Select Choose file, browse to and select the XML text file you created earlier.

6. In the New web resource property pane, enter the following values:

   • Display name: Enter a display name, such as Green custom theme.
   • Name. Accept the automatically generated or enter a unique name for the web resource.
   • Type: Data (XML)

7. Select Save. You publish this customization with the steps in the next section.

Apply the custom theme to apps in your environment

After you select your colors and create the web resource, follow these steps to enable this app header styling for all the apps in your environment that have the New look enabled.

1. In the solution you used to create the web resource, select Add existing > More > Setting.
2. Type custom theme in the Search box, select Custom theme definition, select Next, and then select Add.
3. In the solution, select Custom theme definition, and then select Edit on the command bar.
4. On the right Edit Custom theme definition properties pane, select New environment value under Setting environment value and enter the unique name of your web resource you created earlier (observe the Name column in the solution for the unique name). Remove the double quotes and make sure to add the publisher prefix for the web resource. For example, the name might appear as contoso_green-custom-theme as in this example.
5. Select Save.
6. Select Settings on the left Objects pane, and then select Publish all customizations on the command bar. (This command appears when no components in the solution are selected).

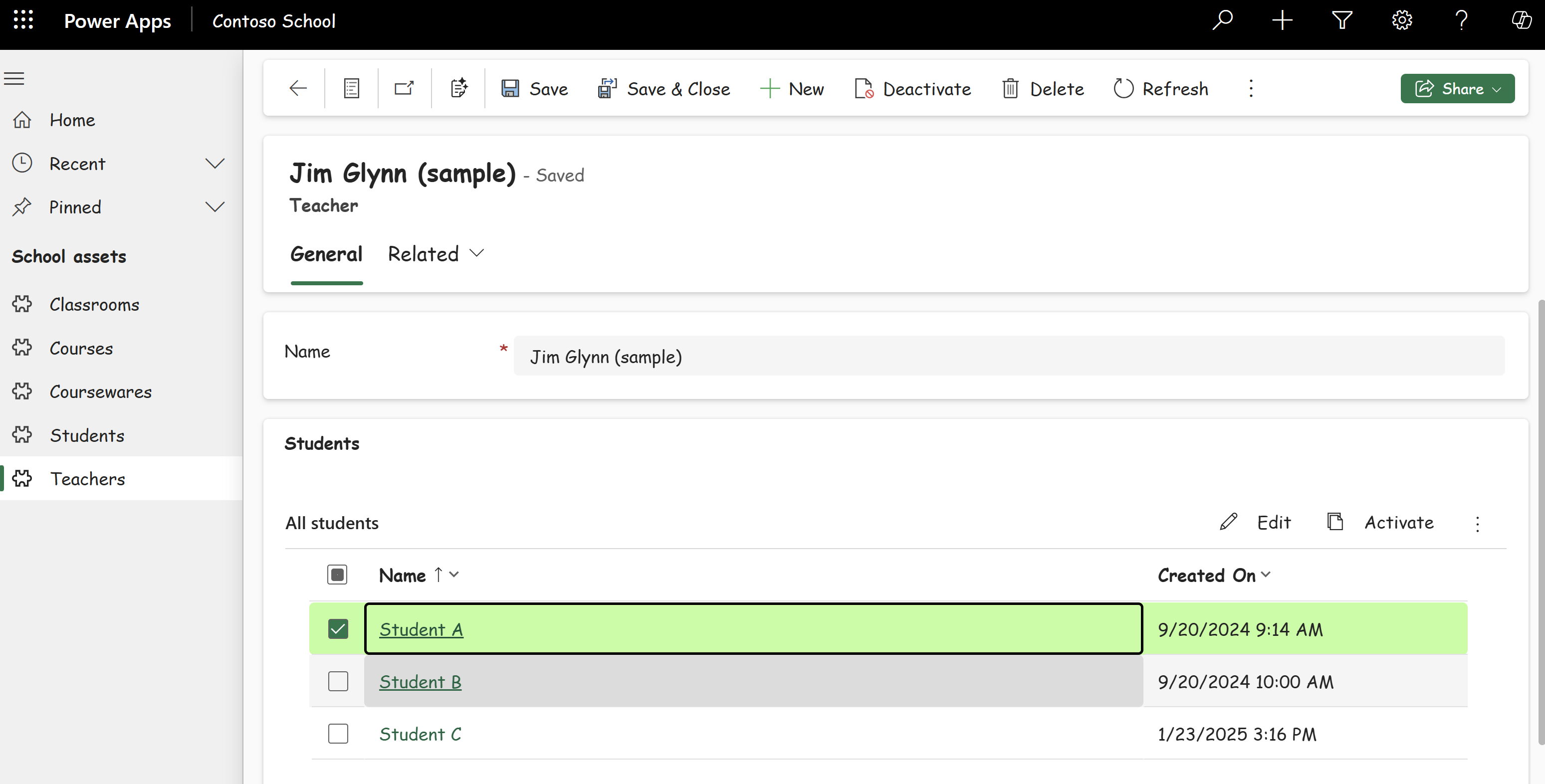

Custom model-driven app using the extended green theme sample.

Verifying new app header colors

After publishing your custom theme, you'll want to validate the application of the theme in the app to ensure everything appears as you expect.

Modify the app header colors only

Makers can choose to only customize the styling of the app header to deviate from the default app theme. This can be done by following these steps:

1. Create an XML file with your various color selections, with one or more of the attributes from app header color overrides section defined inside an AppHeaderColors tag.
2. Create a web resource using the same process described for custom themes, but be sure to give the XML resource an appropriate descriptive display name, such as Green app header XML.
3. Apply custom app header colors to apps in your environment by assigning this web resource to the environment or app in the Override app header color setting. Follow the steps from Applying custom themes to your environment but use the Override app header color setting instead.

   Note

   Any configuration defined in the Override app header color setting is ignored if the Custom theme definition setting has been defined.

4. Verify your custom app header visuals, including all button states, to ensure everything appears as you expect and there are sufficient contrast ratios for accessibility. You should verify the following color choices:
   • The desired colors are shown for the app header at rest and for each button interaction state.
   • There's a minimum of a 4.5:1 contrast ratio between foreground and background colors for the rest state and each button interaction state.

Example XML for app header color override

As an example, this XML specifies a green background color for the app header with white text, with darker background colors for the various button interaction states. For optimal usability, we recommend specifying different color values for each state.

<AppHeaderColors
  background="#12783F"
  foreground="#FFFFFF"
  backgroundHover="#165A31"
  foregroundHover="#FFFFFF"
  backgroundPressed="#0F1C12"
  foregroundPressed="#FFFFFF"
  backgroundSelected="#153D23"
  foregroundSelected="#FFFFFF"
/>

With this configuration, the app header should look like the following when you play the app. You might need to refresh the browser tab to display the theme.
