Better interpretation of alphanumeric values with generative AI

Applies to: Dynamics 365 Customer Service

Dynamics 365 Contact Center includes voice channels for Omnichannel agents that you configure in Copilot Studio. This article introduces a new AI-powered technique to enhance speech interpretation by converting spoken sentences into specific data, such as alphanumeric codes.

Examples of alphanumeric sequences are car plates, Social Security Numbers, and customer codes. Copilot Studio offers predefined entities for such data, such as Age, Dates, and Phone numbers. However, you can extend them by adding lists of elements with synonyms and validation regexes for more complex cases. Learn more at Use entities and slot filling in agents.

User variability adds further challenges, as unique expressions make exhaustive management difficult. Even with instructions on pronouncing data, only some users follow them precisely.

Overall, speech interpretation is a complex task and in real conversation it relies typically on human knowledge of the context and the language.

This knowledge is now available with the use of generative artificial intelligence (generative AI), and it's just a matter of guiding it with appropriate instructions.

Alphanumeric code recognition scenario

A more challenging scenario involves asking the customer to spell out information and validating the recognition result. This complexity arises because the pronunciation of individual letters can cause misunderstandings, or the speaker might include casual initial comments, common in spontaneous responses.

For example, the caller might say: Eh, yes, it's Y H twenty-five J C T. Often, a human agent easily ignores the prefix and focuses on the spelling of the car plate. However, they might still require clarifications and repetitions since phonemes that are difficult for recognizers to hear are also challenging for humans when spoken back.

Often, rather than spelling out letters, customers are asked to use a word alphabet. Word alphabets are easier to understand, especially over the telephone where phrases like B as in Bravo T as in Tango reduce errors compared to shorter utterances such as B T.

While the NATO spelling alphabet is typically used in English-speaking countries or regions, other regions have different practices. In France, person names are commonly used, while people in Italy often prefer names of towns.

Using the word-spelling alphabet can address confusing issues, but another aspect is reconstructing the correct Car Plates number from the spoken sequence.

The variability from users in spelling UK license plates during telephone conversations can lead to diverse methods, even varying modes within a single session. The following table outlines some of the more common ways in which users spell out a name or ID:

For example, a user can spell out the UK license plate AB22CYT in different combinations and preamble:

here it's a as in alpha b as bravo twenty two charlie y t for toronto

Due to recognition errors, the transcript in Copilot Studio might not recognize B as D, resulting in:

here it's a as in alpha d as bravo twenty two charlie y t for toronto

In this example, the letter b is not recognized, and the transcript lists it as the letter d instead.

Address the challenges with generative AI prompts

Generative AI can resolve such a mix of different spelling modalities, ambiguities, and errors producing the correct result. The key is to design an appropriate prompt describing the context and the processing steps to correct and to interpret the user sentence transcription as a car plate. We want a structured response so we can provide instruction to return the alphanumeric code of the car plate in a specific field. Let's name the new field PlateCode.

Then, another need is to prepare a confirmation message that the user can easily recognize. As mentioned before, even a single letter like D can likely be acoustically confused as a B, as well by a human. For that reason and for the sake of usability, it's more appropriate to read back the car plate using the same actual words the user said. For the single letters, use an alphabet that's standard in the relevant country or region.

All the listed items can be addressed with more instructions for AI, requesting to return the confirmation message in another field we name PlatePhrase. We use this field content as a message to ask the user to confirm the recognized license plate.

Prompt design and testing

The figure in this section shows the test results for the license plate using a prompt designed to perform instructions in three steps to correct and interpret the license plate and return the required fields. When you add a new prompt node from the Add an Action menu in Copilot Studio, the window opens so that you can define the instruction prompt. You can use variables, and you can test the behavior by providing examples of values for the variables.

The following image provides these examples:

• The Left pane (Prompt) with instructions concatenated to user input variable.
• The Middle pane (Prompt response) with AI response, zoomed in at the bottom of the figure.
• The Right pane (Input) to assign a sample value to the user input variable.

The prompt begins with a brief sentence to provide context for AI. Then, we outline three steps of instructions.

The first step is to correct errors in isolated letters when they conflict with the subsequent word (for example, D as in Bravo), and return an intermediate result in the field NewSentence. This field isn't used by the Bot but serves as an intermediate step for proceeding to the next instructions.

The second step involves interpreting the partial result as a car plate and returning the car plate as an alphanumeric code in the field PlateCode. English license plates have two possible formats, which complicates interpretation. But for AI, it is enough to show the two formats LLDDLLL or LDDDLLL.

The third step entails providing a message to ask the user for confirmation of the recognized license plate, including an example to illustrate the desired format. The message is returned in the field PlatePhrase, so that the agent provides a confirmation message, such as The car plate is {PlatePhrase}. Is it correct?.

Finally, there are two brief instructions: to return only the requested fields without any other comment, and to return an empty PlateCode if the user utterance doesn't indicate a car plate.

In the Input pane, the literal representation of numbers was utilized instead of digits. This approach aids AI in resolving numerical ambiguities more effectively. The speech recognition result is available in MCS in two formats: MinimallyFormattedText and Text. The former one is more effective because it provides numbers in letters.

The Prompt response pane shows the result which is included as an inner structuredOutput field in the AI response.

In the Prompt design window, you can specify if you want the output in text or JSON format, as the following screenshot illustrates:

You can also specify the model in the Prompt settings. We're using the default model, GPT-4o mini, as the following screenshot illustrates:

For readers' convenience, this is the complete text of the prompt:

You are on the phone with a user saying a car plate.
1. From the user's sentence, construct a 'NewSentence' correcting isolated letters and 'as in' or 'for'. Example: P as Bravo -> Bravo.
2. Interpret the 'NewSentence' into a car number plate in the 'PlateCode' field in the format LLDDLLL or LDDDLLL format.
3. From 'PlateCode' provide a confirmation message 'PlatePhrase' using NATO telephonic alphabet. Example: "E as in Echo, F as in Foxtrot, 3, 3, G as in Golf, S as in Sierra, Q as Quebec"
If user doesn't say a car plate then 'PlateCode' is empty.
Return only the fields one per line.

Copilot Studio Agent implementation

1. The user input is collected by a question node as user's entire response.

2. If channel is voice, the user input variable value is superseded with MinimallyFormattedText that's a property of the System.Activity.SpeechRecognition object.



3. Next, we add a Prompt added in the canvas selecting an action new Prompt. The following screenshot illustrates the prompt.



   Open and edit the prompt as shown in the image. In the prompt settings, set the output format of the prompt to Json, temperature to 0 and model to GPT-4o. The output of this action is stored in a ResponseRecord variable which structuredOutput inner Json has these fields:

   {
     ...
     "structuredOutput": {
       "NewSentence": "...",
       "PlateCode": "...",
       "PlatePhrase": "..."
     }
     ...
   }

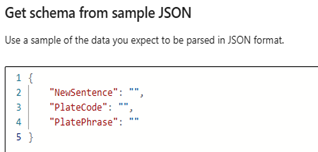

4. Next, we parse the structuredOutput element into an object of type record. Select From sample data as the data type, choose Get schema from sample Json, and then type the following Json string.

   {
     "NewSentence": """",
     "PlateCode": """",
     "PlatePhrase": """"
   }


   The following image illustrates what this step looks like in Copilot Studio.



The response fields are now present in the record saved in step 4 by Json parse node: AnswerRecod.PlateCode and AnswerRecord.PlatePhrase.

The flow at this point can continue with a confirmation request message using the AnswerRecord.PlatePhrase (marked as 1 in the following image). If there is a negative answer, the agent asks again (marked as 2 in the following image), and we jump back to the Prompt node (marked as 3 in the following image).

Summary and key highlights

This article discusses recent advances in Dynamics 365 Contact Center, particularly in enhancing the Voice channel for Omnichannel agents in Copilot Studio.

The following capabilities for managing customer conversations were adopted:

• It introduces a new technique for recognizing alphanumeric sequences, such as car plates, Social Security Numbers, and customer codes, using AI for better speech interpretation.
• The document highlights the challenges of user variability in voice interactions and how AI can be guided with appropriate instructions to resolve them.
• It explains the use a New Prompt node for designing and testing AI prompts in Copilot Studio.
