Azure Monitor customer-managed keys

Azure Monitor encrypts data by using Microsoft-managed keys. You can use your own encryption key to protect data in your workspaces. By using customer-managed keys in Azure Monitor, you control the encryption key lifecycle and access to logs. After you set up customer-managed keys, new data ingested to linked workspaces is encrypted by using your key in Azure Key Vault or Azure Key Vault Managed HSM (Hardware Security Module).

Customer-managed key overview

Data Encryption at Rest is a common privacy and security requirement in organizations. You can let Azure completely manage encryption at rest, or use various options to closely manage encryption and encryption keys.

Azure Monitor ensures that all data and saved queries are encrypted at rest by using Microsoft-managed keys (MMK). Azure Monitor's use of encryption is identical to the way Azure Storage encryption operates.

To control the key lifecycle and revoke access to data, encrypt data by using your own key in Azure Key Vault or Azure Key Vault Managed HSM. The customer-managed keys capability is available on dedicated clusters and provides a higher level of protection and control.

Data ingested to dedicated clusters is encrypted twice - at the service level by using Microsoft-managed keys or customer-managed keys, and at the infrastructure level by using two different encryption algorithms and two different keys. Double encryption protects against a scenario where one of the encryption algorithms or keys is compromised. Dedicated clusters also let you protect data by using Lockbox.

Data ingested in the last 14 days, or recently used in queries, is kept in hot-cache (SSD-backed) for query efficiency. Azure Monitor encrypts SSD data by using Microsoft-managed keys regardless of whether you configure customer-managed keys, but your control over SSD access adheres to key revocation.

Important

Dedicated clusters use a commitment tier pricing model of at least 100 GB per day.

How customer-managed keys work in Azure Monitor

Azure Monitor uses managed identity to grant access to your key in Azure Key Vault. The identity of the Log Analytics clusters is supported at the cluster level. To provide customer-managed keys on multiple workspaces, a Log Analytics dedicated cluster resource serves as an intermediate identity connection between your Key Vault and your Log Analytics workspaces. The cluster's storage uses the managed identity associated with the cluster to authenticate to your Azure Key Vault through Microsoft Entra ID.

Clusters support two managed identity types: system-assigned and user-assigned.

  • System-assigned managed identity is simpler and generated automatically with the cluster when you set identity type to SystemAssigned. Use this identity to grant cluster storage access to your Key Vault for data encryption and decryption.
  • User-assigned managed identity lets you configure customer-managed keys at cluster creation, when you set identity type to UserAssigned, and grant it permissions in your Key Vault before cluster creation.

Configure customer-managed keys on a new cluster, or an existing dedicated cluster with linked workspaces ingesting data. You can unlink workspaces from a cluster at any time. New data ingested to linked workspaces is encrypted with your key, and older data remains encrypted with Microsoft-managed keys. The configuration doesn't interrupt ingestion or queries, where queries are performed across old and new data seamlessly. When you unlink workspaces from a cluster, new data ingested is encrypted with Microsoft-managed keys.

Important

The customer-managed keys capability is regional. Your Azure Key Vault, dedicated cluster, and linked workspaces must be in the same region, but they can be in different subscriptions.

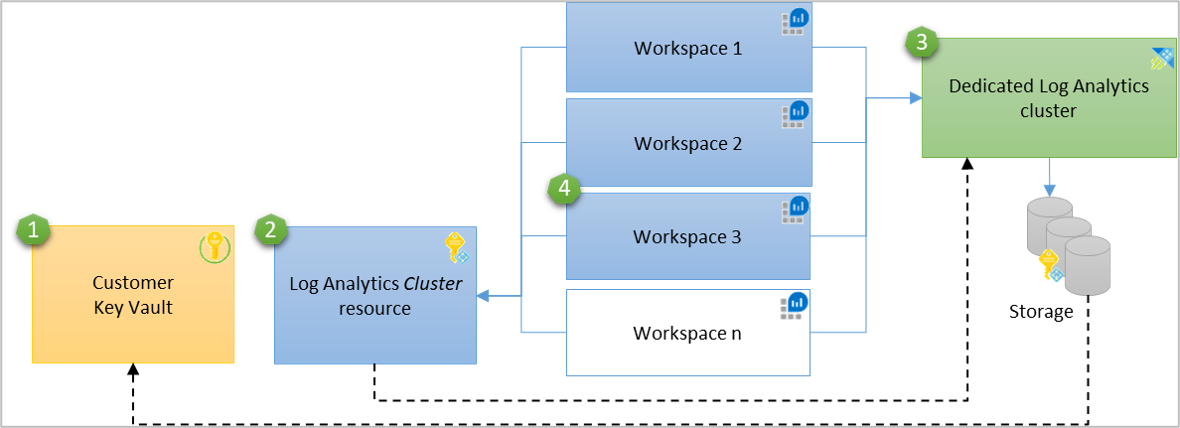

Screenshot of customer-managed key overview.

  1. Key Vault
  2. Log Analytics cluster resource that has a managed identity with permissions to Key Vault - the identity is propagated to the underlying dedicated cluster storage
  3. Dedicated cluster
  4. Workspaces linked to dedicated cluster

Encryption key types

Storage data encryption uses three types of keys:

  • KEK - Key Encryption Key (your customer-managed key)
  • AEK - Account Encryption Key
  • DEK - Data Encryption Key

The following rules apply:

  • The cluster storage has a unique encryption key for every Storage Account, which is known as the AEK.
  • The AEK generates DEKs, which are the keys that encrypt each block of data written to disk.
  • When you configure the customer-managed KEK in your cluster, the cluster storage sends wrap and unwrap requests to your Key Vault for AEK encryption and decryption.
  • Your KEK never leaves your Key Vault. If you store your key in an Azure Key Vault Managed HSM, it never leaves that hardware either.
  • Azure Storage uses the managed identity associated with the cluster for authentication. It accesses Azure Key Vault through Microsoft Entra ID.

Required permissions

To perform the cluster-related actions necessary to provision and manage customer-managed keys for a dedicated cluster, you need these permissions:

Action Permissions or role needed
Create a dedicated cluster Microsoft.Resources/deployments/* and Microsoft.OperationalInsights/clusters/write permissions
For example, as provided by the Log Analytics Contributor built-in role
Change cluster properties Microsoft.OperationalInsights/clusters/write permissions, as provided by the Log Analytics Contributor built-in role, for example
Link workspaces to a cluster Microsoft.OperationalInsights/clusters/write, Microsoft.OperationalInsights/workspaces/write, and Microsoft.OperationalInsights/workspaces/linkedservices/write permissions, as provided by the Log Analytics Contributor built-in role, for example
Check workspace link status Microsoft.OperationalInsights/workspaces/read permissions to the workspace, as provided by the Log Analytics Reader built-in role, for example
Get clusters or check a cluster's provisioning status Microsoft.OperationalInsights/clusters/read permissions, as provided by the Log Analytics Reader built-in role, for example
Update commitment tier or billingType in a cluster Microsoft.OperationalInsights/clusters/write permissions, as provided by the Log Analytics Contributor built-in role, for example
Grant the required permissions Owner or Contributor role that has */write permissions, or the Log Analytics Contributor built-in role, which has Microsoft.OperationalInsights/* permissions
Unlink a workspace from cluster Microsoft.OperationalInsights/workspaces/linkedServices/delete permissions, as provided by the Log Analytics Contributor built-in role, for example
Delete a dedicated cluster Microsoft.OperationalInsights/clusters/delete permissions, as provided by the Log Analytics Contributor built-in role, for example

Customer-managed key provisioning steps

Follow these steps to configure customer-managed keys on a dedicated cluster:

  1. Create or assign the Azure Key Vault KEK (storing key)
  2. Match managed identity types of dedicated cluster to Key Vault access
  3. Grant Key Vault permissions to the managed identity
  4. Update dedicated cluster with key identifier details
  5. Verify dedicated cluster provisioning
  6. Link workspaces to the dedicated cluster

Create or assign the Azure Key Vault KEK (storing key)

A portfolio of Azure Key Management products lists the vaults and managed HSMs that you can use.

Create or use an existing Azure Key Vault in the region where the dedicated cluster exists or where you plan for it to reside. Generate or import a key into your Azure Key Vault to use for logs encryption. You must configure the Azure Key Vault as recoverable to protect your key and the access to your data in Azure Monitor. You can verify this configuration under properties in your Key Vault. Enable both Soft delete and Purge protection.

Important

To effectively respond to Azure Key Vault events such as a key nearing expiry, set up notifications via Azure Event Grid. When the key expires, ingestion and queries aren't affected, but you can't update the key in the cluster. Follow these steps to resolve it:

  1. Identify the key used in cluster's overview page in Azure portal, under JSON View.
  2. Extend the key expiration date in Azure Key Vault.
  3. Update the cluster with the active key, preferably with version value '', to always use the latest version automatically.

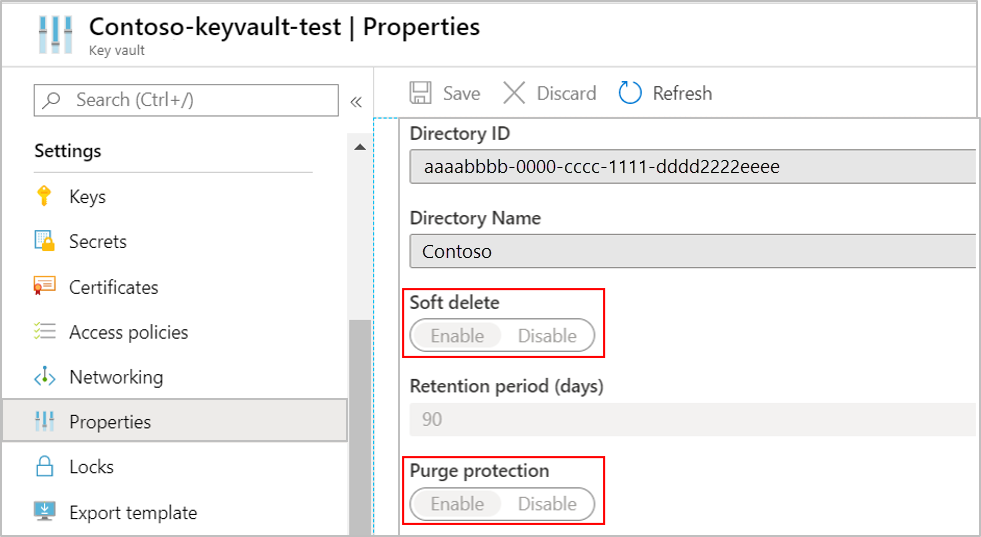

Screenshot of soft delete and purge protection settings.

You can update these settings in Key Vault by using CLI and PowerShell:

Match managed identity types of dedicated cluster to Key Vault access

Dedicated clusters use their managed identity to access your Key Vault KEK to encrypt data. The managed identity type of the dedicated cluster must match the Key Vault role assignment identity to allow data encryption and decryption operations.

Set the identity type property to SystemAssigned or UserAssigned when creating your cluster.

For example, add the following values in the request body for creating a cluster with a system-assigned managed identity:

{
  "identity": {
    "type": "SystemAssigned"
    }
}

Note

You can change the identity type after creating the cluster without interrupting ingestion or queries, with the following considerations:

  • You can't update the identity and key simultaneously for a cluster. Update them in two consecutive operations.
  • When updating SystemAssigned to UserAssigned, grant UserAssigned identity in Key Vault, then update identity in the dedicated cluster.
  • When updating UserAssigned to SystemAssigned, grant SystemAssigned identity in Key Vault, then update identity in the dedicated cluster.

For more information about creating a dedicated cluster, see Create and manage a dedicated cluster.

Grant Key Vault permissions to the managed identity

Key Vault has two permission models to grant access to your dedicated cluster and underlying storage: Azure role-based access control (Azure RBAC - recommended) and Vault access policies (legacy).

  1. Assign Azure RBAC (recommended)

    To add role assignments, you must have a role with Microsoft.Authorization/roleAssignments/write and Microsoft.Authorization/roleAssignments/delete permissions, such as User Access Administrator or Owner.

    1. Open your Key Vault in the Azure portal and select Settings > Access configuration > Azure role-based access control and Apply.
    2. Select Go to access control(IAM) and add the Key Vault Crypto Service Encryption User role assignment.
    3. Select Managed identity in the Members tab and select the subscription for identity and the identity as member.

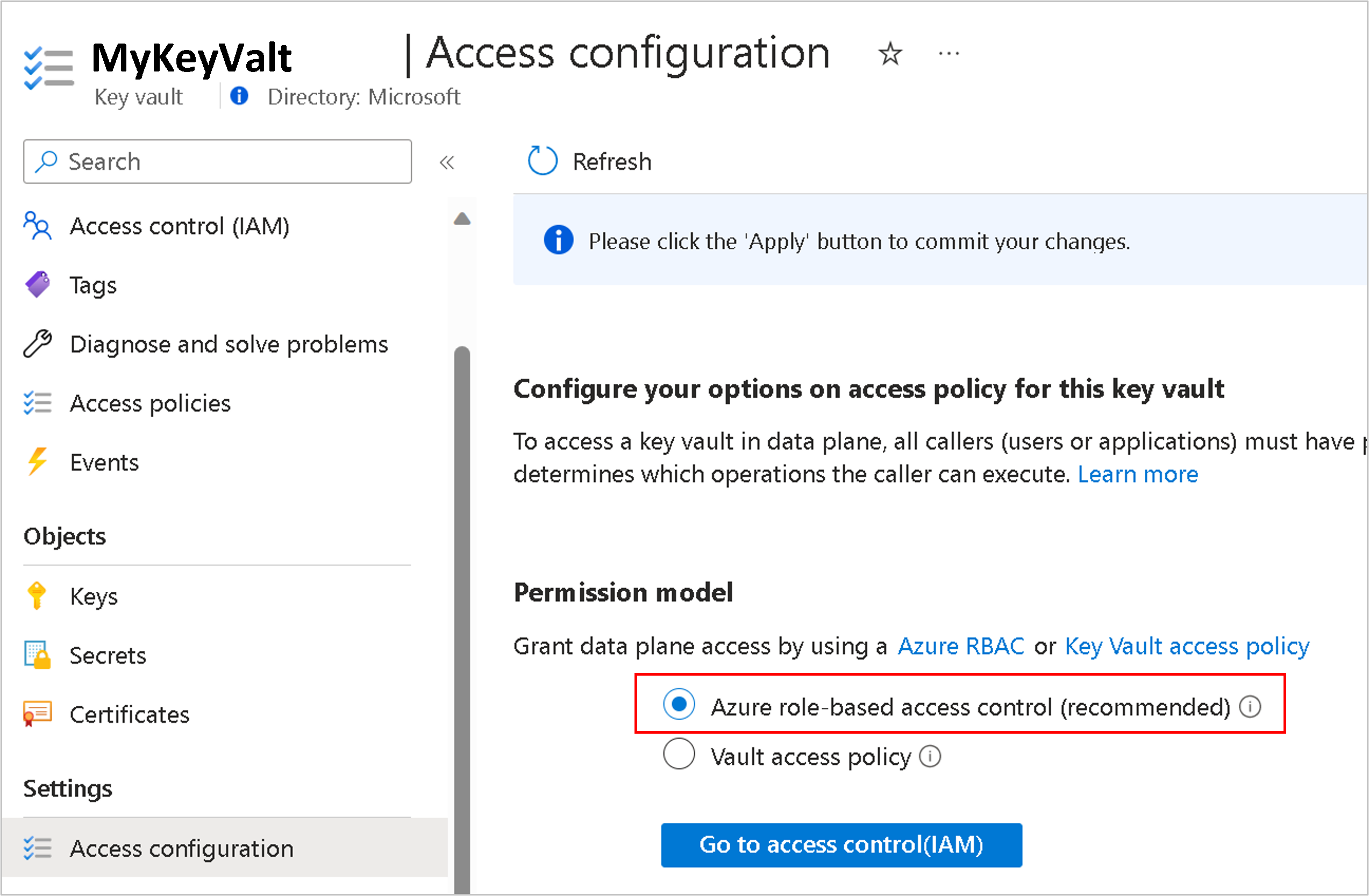

    Screenshot of Grant Key Vault RBAC permissions.

  2. Assign vault access policy (legacy)

    Open your Key Vault in the Azure portal and select Access Policies > Vault access policy > + Add Access Policy to create a policy with these settings:

    • Key permissions - select Get > Wrap Key and Unwrap Key.
    • Select a principal depending on the identity type used in the cluster (system or user assigned managed identity)
      • System assigned managed identity - enter the cluster name or cluster principal ID
      • User assigned managed identity - enter the identity name

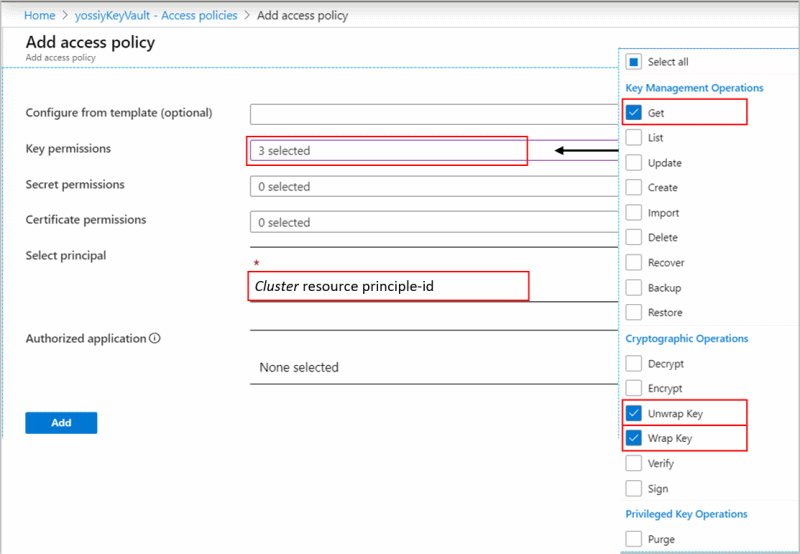

    Screenshot of Grant Key Vault access policy permissions.

    The Get permission is required to verify that your Key Vault is configured as recoverable to protect your key and the access to your Azure Monitor data.

Update dedicated cluster with key identifier details

All operations on the cluster require the Microsoft.OperationalInsights/clusters/write action permission. The Owner or Contributor roles, which include the */write action, can grant this permission. The Log Analytics Contributor role, which includes the Microsoft.OperationalInsights/* action, also grants this permission.

This step updates dedicated cluster storage with the key and version to use for AEK wrap and unwrap.

Important

  • Key rotation can be automatic or per explicit key version. See Key rotation to determine a suitable approach before updating the key identifier details in dedicated cluster.
  • Dedicated cluster updates must not include both identity and key identifier details in the same operation. If you need to update both, the update must be in two consecutive operations.
  • If you're only enabling or changing CMK, use the REST API instead of the CLI. The dedicated cluster update CLI sends an update to capacity even when that property isn't used in the command. This update triggers the 30 day change threshold or the 500 GB commitment tier minimum check.

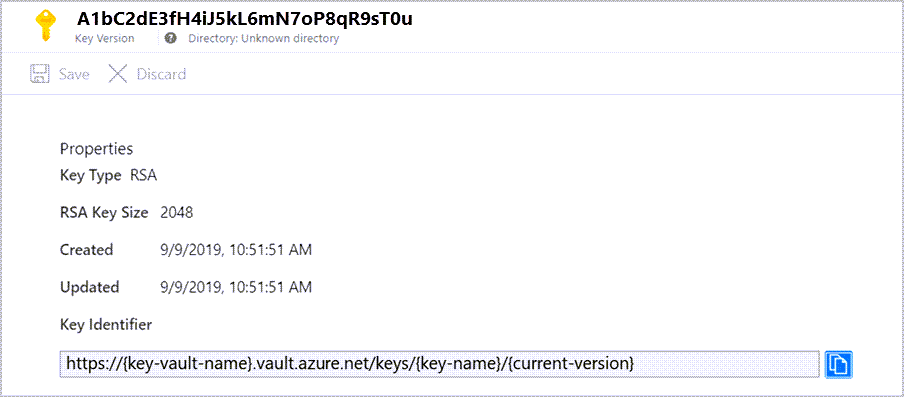

Screenshot of Grant Key Vault permissions.

Update KeyVaultProperties in cluster with key identifier details.

The operation is asynchronous and can take a while to complete.

N/A

Verify dedicated cluster provisioning

Verify that the cluster provisioning state is Succeeded before linking workspaces to the cluster. If you link workspaces and ingest data before provisioning, the process drops the ingested data and you can't recover it.

Verify the provisioning state by using CLI, PowerShell, or REST API as detailed in the Update dedicated cluster with key identifier details section.

Important

Perform this step only after the cluster provisioning. If you link workspaces and ingest data before provisioning, the process drops the ingested data and you can't recover it.

To link a workspace, see Create and manage a dedicated cluster.

Key revocation

Important

  • To revoke access to your data, disable your key or delete the Access Policy in your Key Vault.
  • Setting the cluster's identity type to None also revokes access to your data, but don't use this approach since you can't revert it without contacting support.

The cluster's storage always respects changes in key permissions and becomes unavailable within an hour or sooner if the key is disabled or access policy is deleted. New data ingested to linked workspaces is dropped and unrecoverable. Data is inaccessible on these workspaces and queries fail. Previously ingested data remains as long as your cluster and your workspaces aren't deleted. The data-retention policy governs inaccessible data and purges it when the retention period is reached. Data ingested in the last 14 days and data recently used in queries is also kept in hot-cache (SSD-backed) for query efficiency. The data on SSD gets deleted on the key revocation operation and becomes inaccessible. The cluster storage attempts to reach Key Vault for wrap and unwrap operations periodically. Once the key is enabled and unwrap succeeds, SSD data is reloaded from the dedicated cluster storage. Data ingestion and query functionality resume within 30 minutes.

Key rotation

Key rotation has two modes:

  • Autorotation - update "keyVaultProperties" in cluster and omit "keyVersion" property, or set it to ''. Storage automatically uses the latest key version.
  • Explicit key version update - update "keyVaultProperties" properties and update the key version in "keyVersion" property. Key rotation requires explicit update of "keyVersion" property in cluster. For more information, see Update cluster with Key identifier details. If you generate a new key version in Key Vault but don't update the key in the cluster, the cluster storage keeps using your previous key. If you disable or delete the old key before updating a new one in the cluster, you enter key revocation state.

All your data remains accessible during and after the key rotation operation. The cluster always encrypts data with the Account Encryption Key (AEK), which is encrypted with your new Key Encryption Key (KEK) version in Key Vault.

Customer-managed key for saved queries and log search alerts

The query language used in Log Analytics is expressive and can contain sensitive information in query syntax or comments. Organizations with strict regulatory and compliance requirements must keep such information encrypted by using a customer-managed key. When you link a Storage Account to your workspace, Azure Monitor enables you to store saved queries, functions, and log search alerts encrypted with your key.

Note

Queries remain encrypted with Microsoft key (MMK) in the following scenarios regardless of customer-managed key configuration: Azure dashboards, Azure Logic App, Azure Notebooks, and Automation Runbooks.

When you link your Storage Account for saved queries, the service stores saved queries and log search alert queries in your Storage Account. By having control on your Storage Account encryption-at-rest policy, you can protect saved queries and log search alerts by using a customer-managed key. You're responsible for the costs associated with that Storage Account.

Considerations before setting customer-managed key for saved queries

  • You need write permissions on your workspace and Storage Account.
  • The Storage Account must be StorageV2 and in the same region as your Log Analytics workspace.
  • When linking a Storage Account for saved queries, the service removes existing saved queries and functions from your workspace for privacy. If you need these queries, copy existing saved queries and functions before the configuration. You can view saved queries by using PowerShell, or when you Export template under Automation in your workspace.
  • Queries saved in a query pack aren't stored on a linked Storage Account and can't be encrypted by using a customer-managed key. It's recommended to Save as Legacy query to protect queries by using a customer-managed key.
  • Saved queries and functions in the linked Storage Account are service artifacts and their format might change.
  • Query history and pin to dashboard aren't supported when linking Storage Account for saved queries.
  • You can link a single or separate Storage Account for saved queries and log search alert queries.
  • To keep queries and functions encrypted with your key, configure the linked Storage Account by using a customer-managed key. Perform this operation when you create the Storage Account or later.

Configure linked Storage Account for saved queries

Link a Storage Account to keep saved queries and functions in your Storage Account.

Note

The operation removes saved queries and functions from your workspace to a table in your Storage Account. You can unlink the Storage Account for saved queries to move saved queries and functions back to your workspace. Refresh the browser if saved queries or functions don't show up in the Azure portal after the operation.

N/A

Customer-managed key for Workbooks

Azure Monitor enables you to store Workbook queries encrypted with your key in your own Storage Account as well. Keep in mind the same consideration described in in Customer-managed key for saved queries and log search alerts.

Select Save content to an Azure Storage Account in the Workbook Save operation.

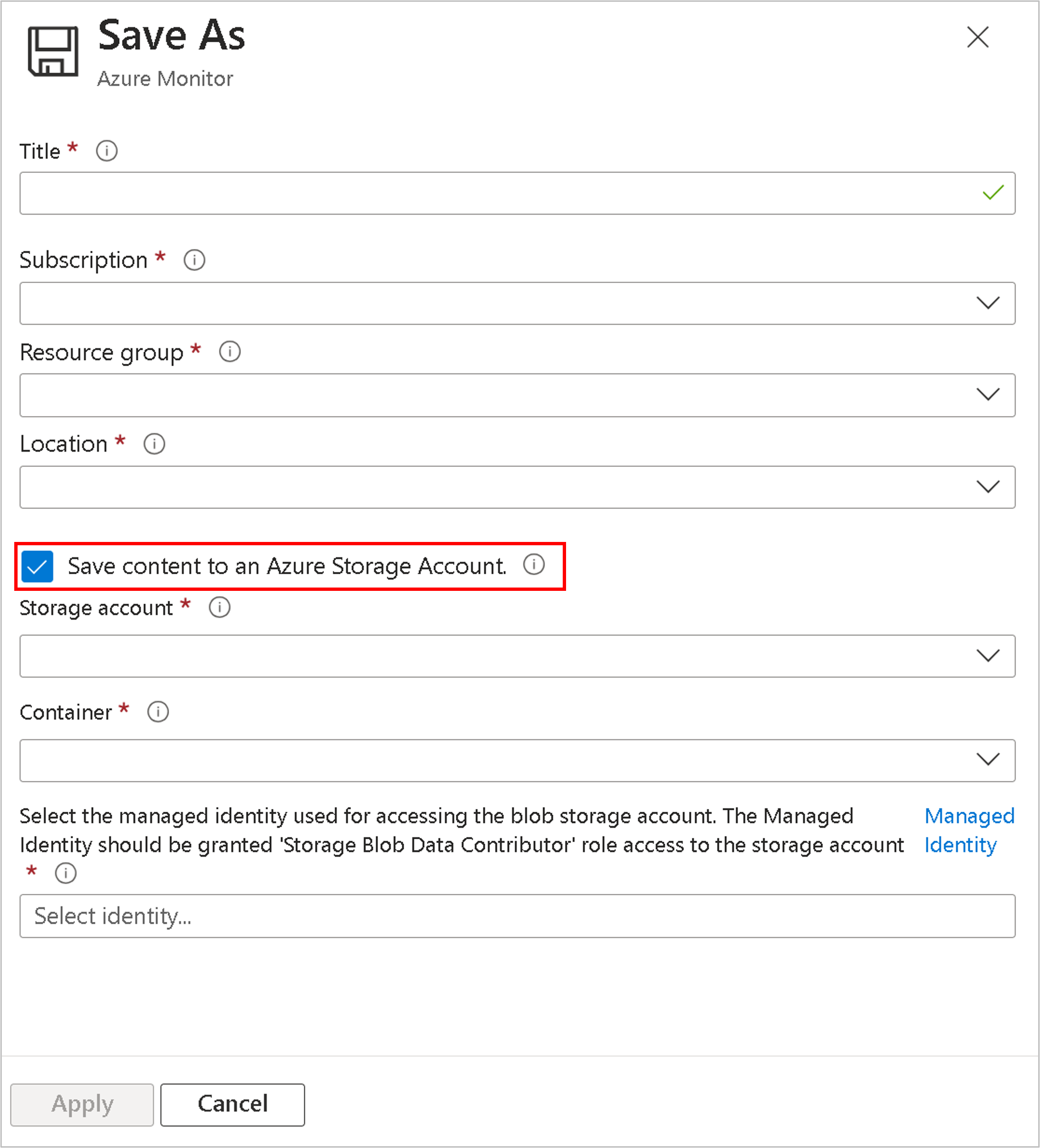

Screenshot of Workbook save.

Considerations before setting customer-managed key for saved log alert queries

  • The cluster saves alert queries as blobs in the Storage Account.
  • Triggered log search alerts don't contain search results or the alert query. Use alert dimensions to get context for the fired alerts.
  • To keep queries and functions encrypted by using your key, configure the linked Storage Account with a customer-managed key. Perform this operation when you create the Storage Account or later.

Configure linked Storage Account for log search alert queries

Link a Storage Account for Alerts to keep log search alert queries in your Storage Account.

N/A

Customer Lockbox

By using Lockbox, you can approve or reject Microsoft engineer requests to access your data during customer support engagements.

Log Analytics dedicated clusters support Lockbox, which grants permission to access data at the subscription level.

To learn more, see Customer Lockbox for Microsoft Azure.

Considerations and limits

  • You can create up to five active clusters in each region and subscription.

  • You can have up to seven reserved clusters (active or recently deleted) in each region and subscription.

  • You can link up to 1,000 Log Analytics workspaces to a cluster.

  • You can perform up to two workspace link operations on a particular workspace in a 30-day period.

  • Moving a cluster to another resource group or subscription isn't currently supported.

  • Cluster updates shouldn't include both identity and key identifier details in the same operation. To update both, use two consecutive operations.

  • Lockbox isn't available in China currently.

  • Lockbox doesn't apply to tables with the Auxiliary table plan.

  • Double encryption is configured automatically for clusters created from October 2020 in supported regions. You can verify if your cluster is configured for double encryption by sending a GET request on the cluster and observing that the isDoubleEncryptionEnabled value is true for clusters with double encryption enabled.

  • If you create a cluster and get the error, "region-name doesn't support double encryption for clusters", you can still create the cluster without double encryption by adding "properties": {"isDoubleEncryptionEnabled": false} in the REST request body.

  • You can't change double encryption settings after the cluster is created.

  • The recover operation is allowed for a deleted workspace that was still linked to the cluster. It's only possible during the soft-delete period. The recovery returns the workspace to its previous state and remains linked to the cluster.

  • Customer-managed key encryption applies to newly ingested data after the configuration time. Data that was ingested before the configuration remains encrypted with Microsoft keys. You can query data ingested before and after the customer-managed key configuration seamlessly.

  • You must configure the Azure Key Vault as recoverable. These properties aren't enabled by default and you should configure them by using CLI or PowerShell:

    • Soft Delete.
    • Purge protection should be turned on to guard against force deletion of the secret and the vault even after soft delete.

  • Your Azure Key Vault, cluster, and workspaces must be in the same region and in the same Microsoft Entra tenant, but they can be in different subscriptions.

  • Setting the cluster's identity type to None also revokes access to your data, but this approach isn't recommended since you can't revert it without contacting support. The recommended way to revoke access to your data is key revocation.

  • You can't use a customer-managed key with user-assigned managed identity if your Key Vault is in a Private-Link (virtual network). Use a system-assigned managed identity in this scenario.

Troubleshooting

  • Behavior per Key Vault availability:

    • During normal ingestion operation, the dedicated cluster storage caches AEK for short periods of time and goes back to Key Vault to unwrap periodically.

    • During Key Vault connection errors, the dedicated cluster storage handles transient errors (timeouts, connection failures, DNS failures) by keeping keys in the cache during the issue to overcome blips and intermittent availability. The query and ingestion capabilities continue without interruption.

  • Key Vault access rate - the frequency with which the cluster storage accesses Key Vault for wrap and unwrap operations is between 6 to 60 seconds.

  • If you update your cluster while it's in the provisioning state or updating state, the update fails.

  • If you get a conflict error when creating a cluster, you might have deleted a cluster with the same name in the last 14 days and reserved its name. Deleted cluster names become available 14 days after deletion.

  • Linking a workspace to a cluster fails if the workspace is linked to another cluster.

  • If you create a cluster and specify the KeyVaultProperties immediately, the operation might fail until an identity is assigned to the cluster and granted to Key Vault.

  • If you update an existing cluster with KeyVaultProperties and Get key Access Policy is missing in Key Vault, the operation fails.

  • If you fail to deploy your cluster, verify that your Azure Key Vault, cluster, and linked workspaces are in the same region. They can be in different subscriptions.

  • If you rotate your key in Key Vault and don't update the new key identifier details in the cluster, the cluster keeps using the previous key and your data becomes inaccessible. Update new key identifier details in the cluster to resume data ingestion and query functionality. Update the key version by using '' notation to ensure the dedicated cluster storage always uses the latest key version automatically.

  • Some operations are long running and can take a while to complete, including cluster create, cluster key update, and cluster delete. You can check the operation status by sending a GET request to cluster or workspace and observe the response. For example, an unlinked workspace doesn't have the clusterResourceId under features.

  • Error messages

    Cluster Update

    • 400 - Cluster is in deleting state. Async operation is in progress. Cluster must complete its operation before any update operation is performed.
    • 400 - KeyVaultProperties isn't empty but has a bad format. See key identifier update.
    • 400 - Failed to validate key in Key Vault. Could be due to lack of permissions or when key doesn't exist. Verify that you set key and Access Policy in Key Vault.
    • 400 - Key isn't recoverable. Key Vault must be set to soft-delete and purge-protection. See Key Vault documentation.
    • 400 - Operation can't be executed now. Wait for the async operation to complete and try again.
    • 400 - Cluster is in deleting state. Wait for the async operation to complete and try again.

    Cluster Get

    • 404 - Cluster not found. The cluster might have been deleted. If you try to create a cluster with that name and get a conflict, the cluster is in the deletion process.

Related content

  • Last updated on
