EmptyView is not visible on the UI when no items are available in iOS platform

Hi @Sreenivasan, Sreejith ,

I have built a custom test environment to replicate your SwipeableListView scenario on iOS.

As suspected, the root cause is the IsVisible="False" property on your external <Label> and <Grid>. While Android sometimes overrides this when assigning an EmptyView, the iOS rendering engine strictly obeys the IsVisible="False" command and refuses to render the views.

I recommend removing the IsVisible="False" property and define your layouts inline directly inside the <ctrl:SwipeableListView.EmptyView> tags, rather than using an external x:Reference.

You can refer to my following code example:

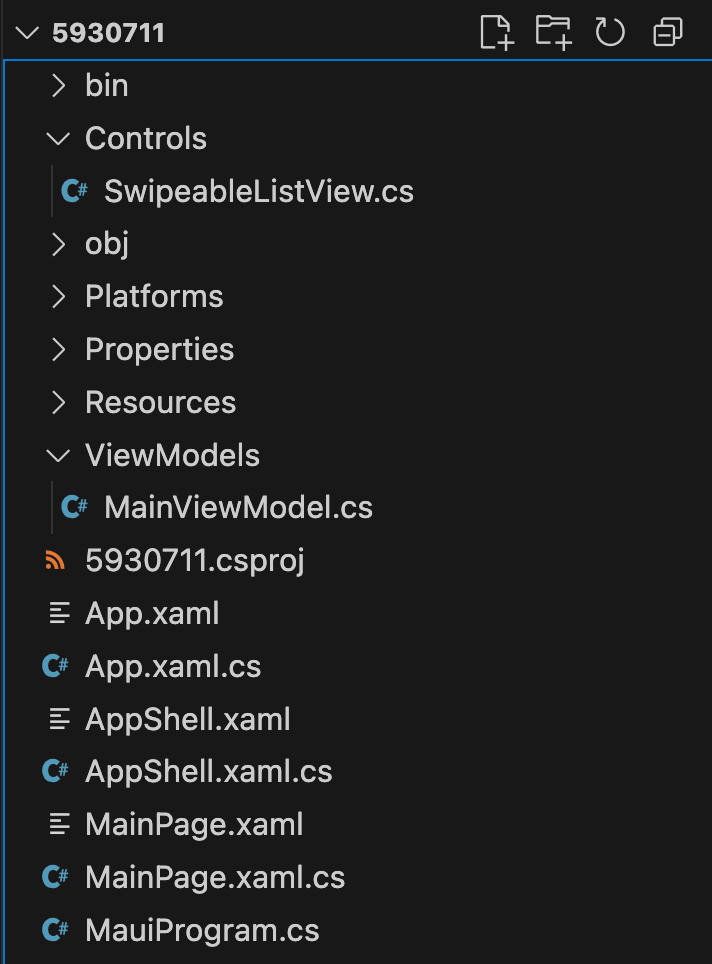

Controls/SwipeableListView.cs:

using System.Collections;
using System.Windows.Input;

namespace _5930711.Controls
{
    public class SwipeableListView : ContentView
    {
        private CollectionView _innerList;

        public SwipeableListView()
        {
            _innerList = new CollectionView();
            Content = _innerList;
        }

        public static readonly BindableProperty ItemsProperty = BindableProperty.Create(nameof(Items), typeof(IEnumerable), typeof(SwipeableListView), propertyChanged: OnItemsChanged);
        public IEnumerable Items { get => (IEnumerable)GetValue(ItemsProperty); set => SetValue(ItemsProperty, value); }
        private static void OnItemsChanged(BindableObject bindable, object oldValue, object newValue)
        {
            if (bindable is SwipeableListView view) view._innerList.ItemsSource = (IEnumerable)newValue;
        }

        public static readonly BindableProperty EmptyViewProperty = BindableProperty.Create(nameof(EmptyView), typeof(object), typeof(SwipeableListView), propertyChanged: OnEmptyViewChanged);
        public object EmptyView { get => GetValue(EmptyViewProperty); set => SetValue(EmptyViewProperty, value); }
        private static void OnEmptyViewChanged(BindableObject bindable, object oldValue, object newValue)
        {
            if (bindable is SwipeableListView view) view._innerList.EmptyView = newValue;
        }

        public static readonly BindableProperty LeftButtonCommandProperty = BindableProperty.Create(nameof(LeftButtonCommand), typeof(ICommand), typeof(SwipeableListView));
        public ICommand LeftButtonCommand { get => (ICommand)GetValue(LeftButtonCommandProperty); set => SetValue(LeftButtonCommandProperty, value); }

        public static readonly BindableProperty RightButtonCommandProperty = BindableProperty.Create(nameof(RightButtonCommand), typeof(ICommand), typeof(SwipeableListView));
        public ICommand RightButtonCommand { get => (ICommand)GetValue(RightButtonCommandProperty); set => SetValue(RightButtonCommandProperty, value); }

        public static readonly BindableProperty SelectedItemCommandProperty = BindableProperty.Create(nameof(SelectedItemCommand), typeof(ICommand), typeof(SwipeableListView));
        public ICommand SelectedItemCommand { get => (ICommand)GetValue(SelectedItemCommandProperty); set => SetValue(SelectedItemCommandProperty, value); }

        public bool LeftButtonEnabled { get; set; }
        public bool RightButtonEnabled { get; set; }
    }
}

ViewModels/MainViewModel.cs:

using System.Collections.ObjectModel;

namespace _5930711.ViewModels
{
    public class MainViewModel
    {
        public ObservableCollection<string> ArchivedNotifications { get; set; } = new ObservableCollection<string>();
        public ObservableCollection<string> Notifications { get; set; } = new ObservableCollection<string>();

        public bool HasNoAlerts => true;
        public string NoAlertsTitle { get; set; } = "You're all caught up!";
        public string NoAlertsDescription { get; set; } = "No new alerts at this time.";
    }
}

MainPage.xaml:

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:ctrl="clr-namespace:_5930711.Controls"
             x:Class="_5930711.MainPage">

    <VerticalStackLayout Spacing="20" Margin="10">

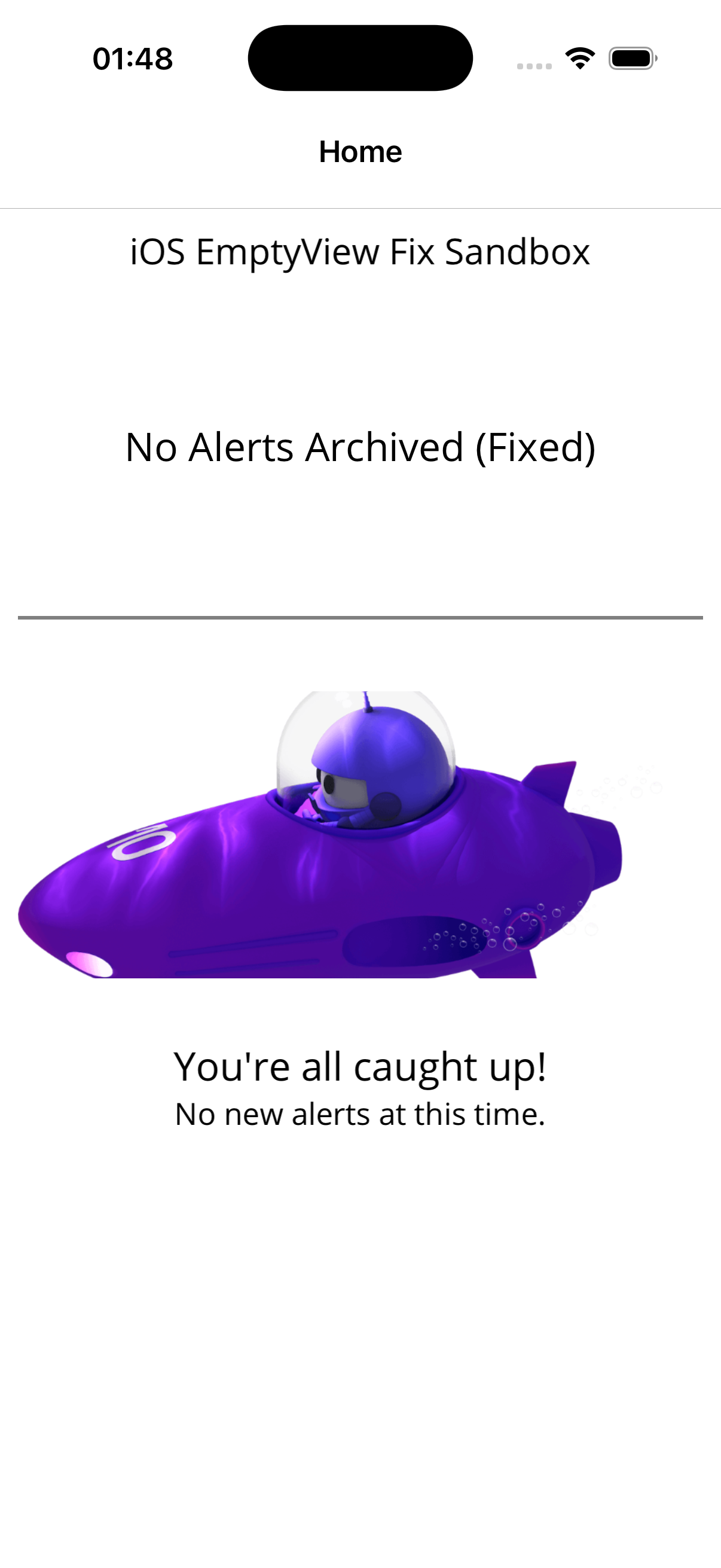

        <Label Text="iOS EmptyView Fix Sandbox" FontSize="20" HorizontalOptions="Center" FontAttributes="Bold"/>

        <ctrl:SwipeableListView
            HeightRequest="150"
            AutomationProperties.IsInAccessibleTree="False"
            SelectedItemCommand="{Binding SelectedItemCommand, Mode=TwoWay}"
            VerticalOptions="FillAndExpand" HorizontalOptions="FillAndExpand"
            LeftButtonEnabled="false"
            RightButtonEnabled="true"
            RightButtonCommand="{Binding UnarchiveCommand}"
            Items="{Binding ArchivedNotifications}">

            <ctrl:SwipeableListView.EmptyView>
                <Label Text="No Alerts Archived (Fixed)"
                       AutomationProperties.IsInAccessibleTree="{Binding HasNoAlerts}" FontSize="Large"
                       VerticalTextAlignment="Center" HorizontalTextAlignment="Center" TextColor="Black"/>
            </ctrl:SwipeableListView.EmptyView>

        </ctrl:SwipeableListView>

        <BoxView HeightRequest="2" Color="Gray" />

        <ctrl:SwipeableListView
            HeightRequest="300"
            VerticalOptions="Fill" HorizontalOptions="Fill"
            SelectedItemCommand="{Binding SelectedItemCommand, Mode=TwoWay}"
            LeftButtonCommand="{Binding ReadCommand}"
            LeftButtonEnabled="true"
            RightButtonEnabled="true"
            RightButtonCommand="{Binding ArchiveCommand}"
            Items="{Binding Notifications}"
            AutomationProperties.IsInAccessibleTree="False">

            <ctrl:SwipeableListView.EmptyView>
                <Grid>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="60*" />
                        <RowDefinition Height="40*" />
                    </Grid.RowDefinitions>

                    <Image
                        Grid.Row="0" Margin="0,20,0,0" Aspect="AspectFill"
                        AutomationProperties.IsInAccessibleTree="False"
                        Source="dotnet_bot.png"
                        VerticalOptions="FillAndExpand" HorizontalOptions="FillAndExpand" />

                    <StackLayout
                        Grid.Row="1" VerticalOptions="Center" HorizontalOptions="Center">
                        <Label Text="{Binding NoAlertsTitle}" HorizontalTextAlignment="Center" FontSize="22" />
                        <Label Text="{Binding NoAlertsDescription}" HorizontalTextAlignment="Center" FontSize="17" />
                    </StackLayout>
                </Grid>
            </ctrl:SwipeableListView.EmptyView>

        </ctrl:SwipeableListView>

    </VerticalStackLayout>
</ContentPage>

MainPage.xaml.cs:

using _5930711.ViewModels;

namespace _5930711
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            BindingContext = new MainViewModel();
        }
    }
}

Hope this helps. I would be happy to investigate further if needed. Thank you for your patience.

Hello @Sreenivasan, Sreejith ,

Thanks for your question.

The issue you are experiencing happens because of the IsVisible="False" property set on your external _emptyLabel and _stackLayout controls.

While Android's rendering engine sometimes forces these views to become visible when they are assigned as an EmptyView, the iOS rendering engine is much stricter. On iOS, when you pass a view with IsVisible="False" into the EmptyView property, the system respects your original instruction to keep it hidden. As a result, the layout is technically there, but it remains invisible to the user.

I recommend removing the external x:Reference approach. Instead, define your EmptyView directly inline inside the SwipeableListView. This prevents the need to toggle visibility altogether.

You can refer to these following steps:

• Remove the external <Label> and define it directly inside <ctrl:SwipeableListView.EmptyView> like this:

<ctrl:SwipeableListView
    Grid.Row="1"
    AutomationProperties.IsInAccessibleTree="False"
    SelectedItemCommand="{Binding SelectedItemCommand, Mode=TwoWay}"
    VerticalOptions="FillAndExpand" HorizontalOptions="FillAndExpand"
    LeftButtonEnabled="false"
    RightButtonEnabled="true"
    RightButtonCommand="{Binding UnarchiveCommand}"
    Items="{Binding ArchivedNotifications}">

    <ctrl:SwipeableListView.EmptyView>
        <Label Text="{ex:Localized NoAlertsArchivedText}"
               AutomationProperties.HelpText="{ex:Localized NoAlertsArchivedText}"
               AutomationProperties.IsInAccessibleTree="{Binding HasNoAlerts}" FontSize="Large"
               VerticalTextAlignment="Center" HorizontalTextAlignment="Center" TextColor="Black"/>
    </ctrl:SwipeableListView.EmptyView>

</ctrl:SwipeableListView>

• Similarly, I suggest removing the external <Grid x:Name="_stackLayout"> and place the entire layout inside the tags:

<ctrl:SwipeableListView VerticalOptions="Fill" HorizontalOptions="Fill"
                        SelectedItemCommand="{Binding SelectedItemCommand, Mode=TwoWay}"
                        LeftButtonCommand="{Binding ReadCommand}"
                        LeftButtonEnabled="true"
                        RightButtonEnabled="true"
                        RightButtonCommand="{Binding ArchiveCommand}"
                        Items="{Binding Notifications}"
                        AutomationProperties.IsInAccessibleTree="False">

    <ctrl:SwipeableListView.EmptyView>
         <Grid>
            <Grid.RowDefinitions>
                <RowDefinition Height="60*" />
                <RowDefinition Height="40*" />
            </Grid.RowDefinitions>

            <Image
                Grid.Row="0"
                Margin="0,20,0,0"
                Aspect="AspectFill"
                AutomationProperties.IsInAccessibleTree="False"
                Source="pic_big_empty_alerts"
                VerticalOptions="FillAndExpand"
                HorizontalOptions="FillAndExpand" />

            <StackLayout
                Grid.Row="1"
                 VerticalOptions="Center"
                 HorizontalOptions="Center">

                <Label
                    Text="{Binding NoAlertsTitle}"
                    HorizontalTextAlignment="Center"
                    FontSize="22" />

                <Label
                    Text="{Binding NoAlertsDescription}"
                    HorizontalTextAlignment="Center"
                    FontSize="17" />
            </StackLayout>
        </Grid>
    </ctrl:SwipeableListView.EmptyView>

</ctrl:SwipeableListView>

Please try and let me know the results. I'd be happy to investigate further if needed.

I hope this addresses your question. If this response was helpful, please consider following the guidance to provide feedback.
