EventHub have Server Busy Errors time to time

Server busy errors in Azure Event Hubs are throttling signals that are raised when the service detects that either a partition or the namespace is exceeding its provisioned throughput or certain operational limits, even if the aggregated Incoming Bytes metric does not look high.

The criteria are as follows:

1. Partition-level throughput hot spots (error code 50002)
   • If traffic is unevenly distributed and one partition hits its local throughput-unit (TU) limit, Event Hubs returns a ServerBusyException even though the overall namespace Incoming Bytes may appear moderate.
   • Resolution is to revise the partition distribution strategy or send without a partition key so that Event Hubs can balance load across partitions.
2. Namespace-level throughput-unit limits (error code 50002)
   • Each TU provides up to 1 MB/s ingress (and ≤1000 ingress requests/s) and 2 MB/s egress (and ≤4096 egress events/s) across the namespace.
   • When real-time ingress/egress or request rate exceeds TUs × limits, Event Hubs throttles and emits server busy errors.
   • The portal’s metrics are 1‑minute aggregates; instantaneous spikes above the TU limits can trigger throttling even if the 1‑minute Incoming Bytes sum looks low.
3. Excessive management/metadata calls (error code 50008)
   • If the container running the namespace is CPU constrained, or if there are too many calls to operations like GetRuntimeInformation/GetRuntimeInfo, Event Hubs can return ServerBusyException with error code 50008.
   • Event Hubs supports up to 50 GetRuntimeInfo calls per second per consumer group; exceeding this can cause short bursts of server busy errors.

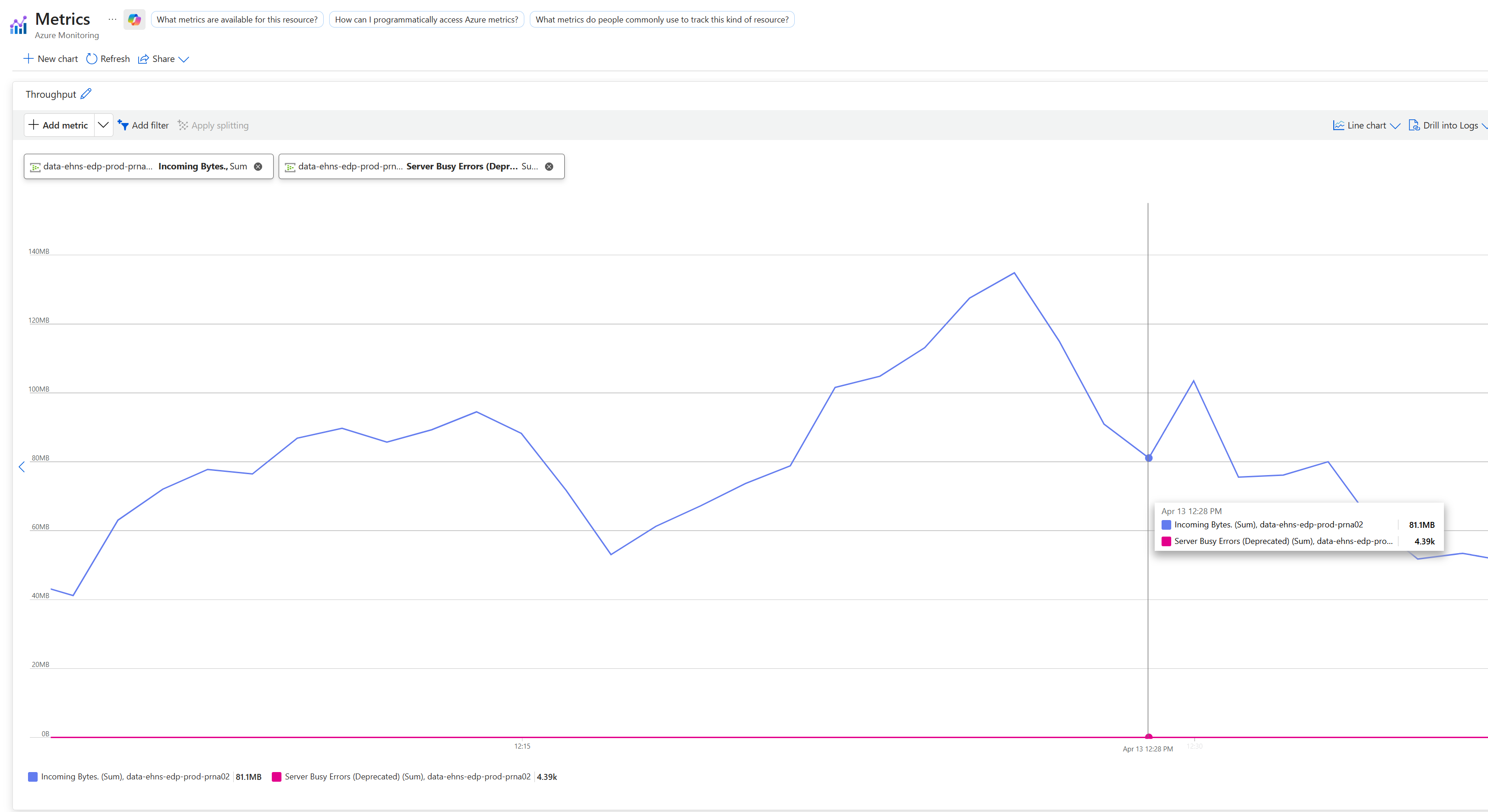

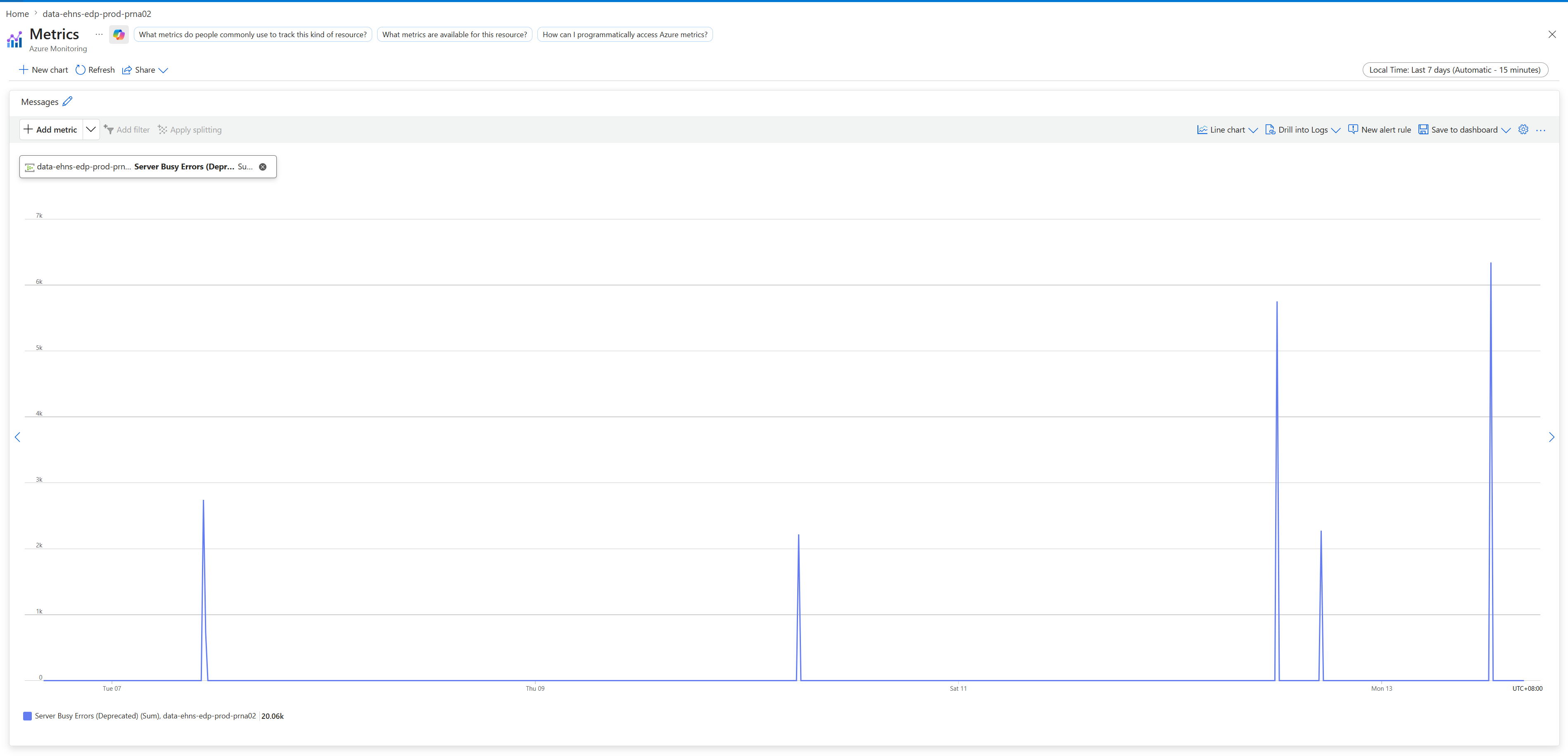

4. How to interpret and investigate the metric
   • Use the Throughput and Requests tabs on the namespace Overview → Show metrics blade.
   • For the time ranges where Server Busy Errors spike, check:
     • Incoming Bytes / Outgoing Bytes peaks and divide by 60 to approximate bytes per second.
     • Incoming Requests at peak and compare to TU limits (1000 ingress requests/s per TU).
   • If peak values exceed the TU-based limits, increase TUs on the Scale page or enable Auto-inflate so the namespace can scale up automatically.
5. Client behavior and retries
   • For AMQP/Event Hubs clients, ServerBusyException is a transient error that should be handled with retries and backoff. For example, the Java ServerBusyException documentation recommends waiting at least 4 seconds before retrying operations for that entity.

In summary, server busy errors are triggered when either a single partition or the namespace as a whole exceeds throughput or operational limits (bytes/s, requests/s, or certain management-call limits). Short spikes and partition hot spots can cause these errors even when the aggregated Incoming Bytes metric appears low.

References:

• Event Hubs messaging exceptions - .NET (legacy)
• ServerBusyException Class
• Apache Kafka troubleshooting guide for Event Hubs
• Azure Event Hubs monitoring data reference
