Trouble connecting Foundry agent to MCP server behind APIM

Elise Mjoen 0 Reputation points
2026-03-18T09:43:34.9533333+00:00

I'm having consistent problems connecting my Microsoft Foundry agent to an MCP server that was created from API Management (APIM) by exposing another REST-API in APIM in Azure. Every time the agent tries to fetch data from the MCP server, the request fails with the following error message:

“The server had an error processing your request. Sorry about that! You can retry your request, or contact us through an Azure support request at: https://go.microsoft.com/fwlink/?linkid=2213926 if you keep seeing this error. (Please include the request ID f9774a65-a4a6-4d7a-9039-246ac920abe2.)”

I do not have an Azure Support plan, so I’m unable to open a support ticket, but I hope someone here can help me. What could be possible causes to my problem? How can I solve it?

Setup details: The REST-API was exposed as a MCP server by clicking that button in the Azure portal. I have not added any policies to the MCP Server, but I have checked the subscription required-box. I added the MCP Server in Foundry by clicking Tools -> Connect a tool -> Custom -> Model Context Protocol (MCP). There, I pasted the server url, chose key-based authentication and provided the Ocp-Apim-Subscription-Key and the x-api-key for the original REST-API (unsure if this key is necessary or not).

Foundry Tools
Foundry Tools

Formerly known as Azure AI Services or Azure Cognitive Services is a unified collection of prebuilt AI capabilities within the Microsoft Foundry platform

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Jorre De Backer 0 Reputation points
    2026-03-18T15:44:35.0566667+00:00

    A couple of things I would check first:

    • Remove the x-api-key, having both that and Ocp-Apim-Subscription-Key can cause issues since APIM only needs the subscription key.
    • Also, add a CORS policy to your APIM MCP server without it Foundry's requests can get blocked silently because they're coming from a different domain.
      • APIM → APIs → your MCP server → Policies and add a basic inbound CORS policy allowing all origins. You can tighten it down to specific origins once it's working.
      https://learn.microsoft.com/en-us/azure/api-management/cors-policy

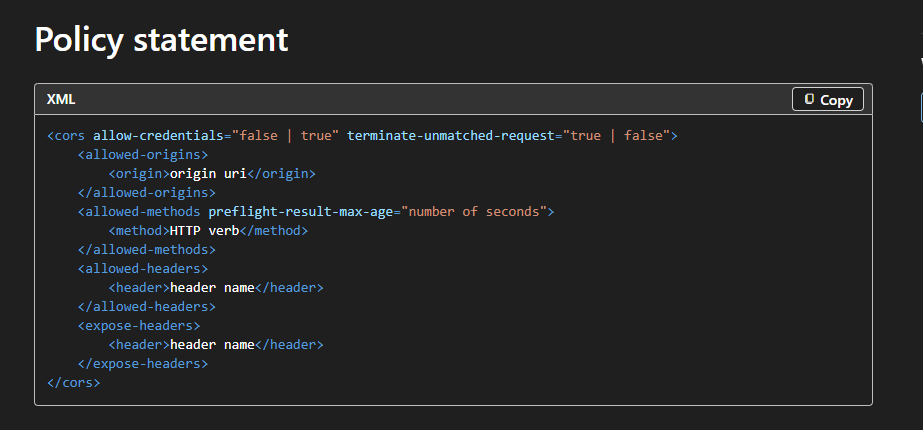

      The block below can be added to alow Foundry's specific domain
      User's image
