Visio won't allow me to move an object to its designated position

Steve Epperheimer 0 Reputation points
2026-02-05T04:05:13.8366667+00:00

What a weird Q&A system...

I'm attempting to get help with Visio Professional 2016. I have a document that won't allow me to add or move a shape to a specific location. After dragging and releasing the shape it immediately moves off the drawing page, or to some other location. If I select the object and attempt to nudge it back to it original location as the shape approaches its original location (a few nudges short) it gets bounced back to where I started nudging it from. I don't have snap to grid on. I've done a compatibility check and no compatibility issues were found. I've tried to copy the file, and the same issue is on the copied file. This file is the only one I have issue with.

Any help would be appreciated.

Steve

Microsoft 365 and Office | Visio | Other | Windows

2 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Michelle-N 16,635 Reputation points Microsoft External Staff Moderator
    2026-02-05T11:03:30.79+00:00

    Hi @Steve Epperheimer

    Thank you for reaching out to the Q&A Forum.

    Based on the information you shared, I understand that in Visio Professional 2016 you have a specific document where shapes cannot be placed or moved to certain locations. When you drag and release a shape, it immediately jumps off the drawing page or to a different position, and when nudging the shape back, it gets pushed back before reaching the intended location. This issue only occurs in this particular file, while other Visio files work normally.

    After researching and attempting to reproduce this behavior, I was not able to observe the same issue in my environment. To help investigate further, would you be able to share a sample file that shows the issue via private message? That would help me test it more accurately.

    User's image

    In the meantime, please try the following checks:

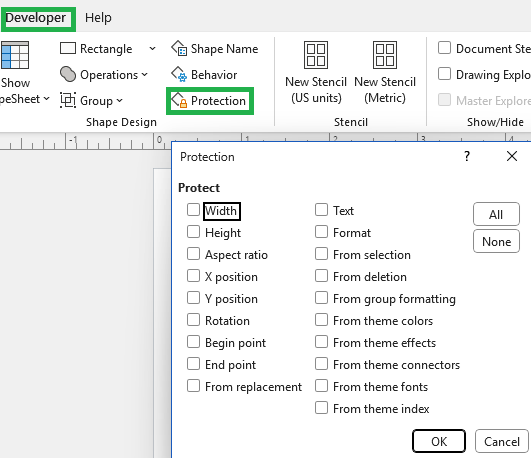

    -Check and remove Shape Protection: Select the affected shape, go to the Developer tab > Protection, and uncheck any selected options (such as Position or Behavior). Then try moving the shape again.

    User's image

    -Check for Containers or controlled layouts: If the shape is inside a container or part of a structured layout, the container may be controlling its position and forcing it back. Try removing the shape from the container or disabling the container behavior, then test again.

    Since I don’t have full visibility into your specific environment and file structure, having additional details or the sample file will allow me to help you more effectively.

    Looking forward to your update.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    Was this answer helpful?

    1 person found this answer helpful.

  2. AI answer

    2026-02-05T04:05:22.79+00:00

    It sounds like you are experiencing a frustrating issue with moving shapes in Visio Professional 2016. Here are a few troubleshooting steps you can try:

    1. Check for Grouping: Ensure that the shape you are trying to move is not part of a group. If it is, you may need to ungroup it first.
    2. Check Layer Settings: Verify that the layer the shape is on is not locked. You can check this by going to the Home tab, clicking on Layers, and then selecting Layer Properties. Ensure that the layer is not set to "Locked".
    3. Restart Visio: Sometimes, simply restarting the application can resolve unexpected behavior.
    4. Update Visio: Ensure that your Visio is up to date with the latest patches and updates from Microsoft, as this can resolve known issues.
    5. Check for Corruption: Since this issue is specific to one file, it might be corrupted. You can try saving the drawing as an XML drawing (.vdx) and then reopening it as a Visio drawing (.vsd) to see if that resolves the issue.
    6. Safe Mode: Try starting Visio in Safe Mode to see if the issue persists. You can do this by holding down the Ctrl key while starting Visio.

    If none of these steps resolve the issue, you may need to recreate the drawing or restore it from a backup if available.

    References:

    AI-generated content may be incorrect. Read our transparency notes for more information.

    Was this answer helpful?
