vb.net reportviewer render SSRS report print first page only

Thank you for reaching out. This is a known behavior when the SSRS report is rendered incorrectly or when page iteration is not handled properly in the PrintPage event.

Root Cause

The issue occurs because:

• ServerReport.Render("Image", ...) returns only one EMF stream unless a stream callback is used.
• PrintPage is fired once unless e.HasMorePages = True is correctly set.
• pageIndex is not reset or incremented properly.
• Page streams are not generated for all report pages.

As a result, only the first page gets printed.

Recommended Solution:

Step 1: Declare global variables

Private pages As New List(Of Metafile)
Private pageIndex As Integar = 0

Step 2: Render all pages using a stream callback

This ensures every page of the report is rendered

Private Function CreateStream( _
	ByVal name As String, _
	ByVal extension As String, _
	ByVal encoding As System.Text.Encoding, _
	ByVal mimetype As String, _
	ByVal willSeek As Boolean) As IO.Stream

	Dim stream As New IO.MemoryStream()
	pages.Add(New Metafile(stream))
	Return stream
End function

Step 3: Render report to EMF images

Dim deviceInfo As String =
"<DeviceInfo>" &
" <OutputFormat>EMF</OutputFormat>" &
" <PageWidth>8.3in</PageWidth>" &
" <PageHeight>11.7in</PageHeight>" &
" <MarginTop>0.14in</MarginTop>" &
" <MarginLeft>0.22in</MarginLeft>" &
" <MarginRight>0.22in</MarginRight>" &
" <MarginBottom>0.14in</MarginBottom>" &
"</DeviceInfo>"

pages.Clear()

ReportViewer1.ServerReport.Rendor(
	"Image",
	deviceInfo,
	AddressOf CreateStream,
	Nothing
)
For each page As Metafile in pages
	page.GetHenhmetafile()
Next

Step 4: Print using PrintDocument

pageIndex = 0
Dim doc As New Printing.PrintDocument()
AddHandler doc.printPage, AddressOf PrintPageHandler
doc.Print()

Step 5: Correct PrintPageHandler(Critical Fix)

 Private Sub PrintPageHandler(
	ByVal sender As Object,
	ByVal e As Printing.PrintPageEventArgs)

 Dim page As Metafile = pages(pageIndex)
        e.Graphics.DrawImage(
			page,
			e.PageBounds
		)
		pageIndex +=1
		e.HasMorePages = (pageIndex < pages.Count)
End Sub

This ensures all pages are printed, not just the first one.

Why This works

• SSRS generates one EMF stream per page.
• CreateStream captures all pages
• HasMorePages correctly tells the printer to continue
• PageIndex ensures sequential printing

Please let us know if you require any further assistance we’re happy to help. If you found this information useful, kindly mark this as "Accept Answer".

Thank you for detailed follow up.

Root Cause

In serverReport, these are the only valid signatures:
Valid Render overload

ServerReport.Render(
	format As String,
	deviceInfo As String,
	ByRef mimeType As String,
	ByRef encoding As String,
	ByRef fileNameExtension As String,
	ByRef streams As String(),
	ByRef warnings As Warning()
) As Byte()

Valid RenderStream overload

ServerReport.RenderStream
(	format As String,
	streamId As String,
	deviceInfo As String,
	ByRef mimeType As String,
	ByRef encoding As String
) As Byte()

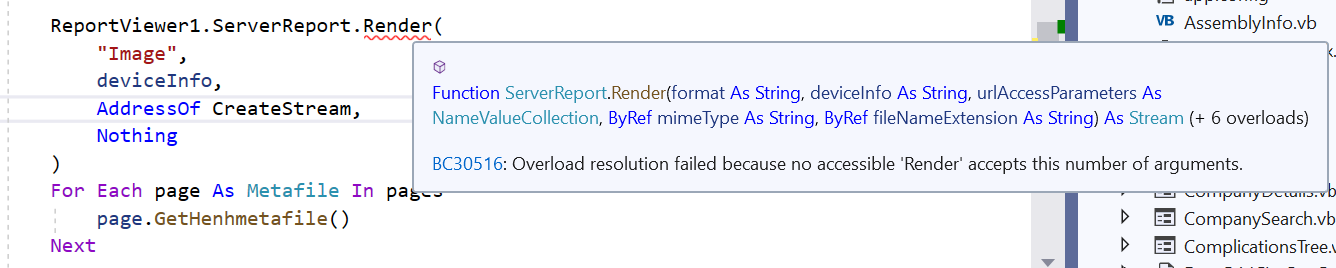

CreateStream is NOT supported

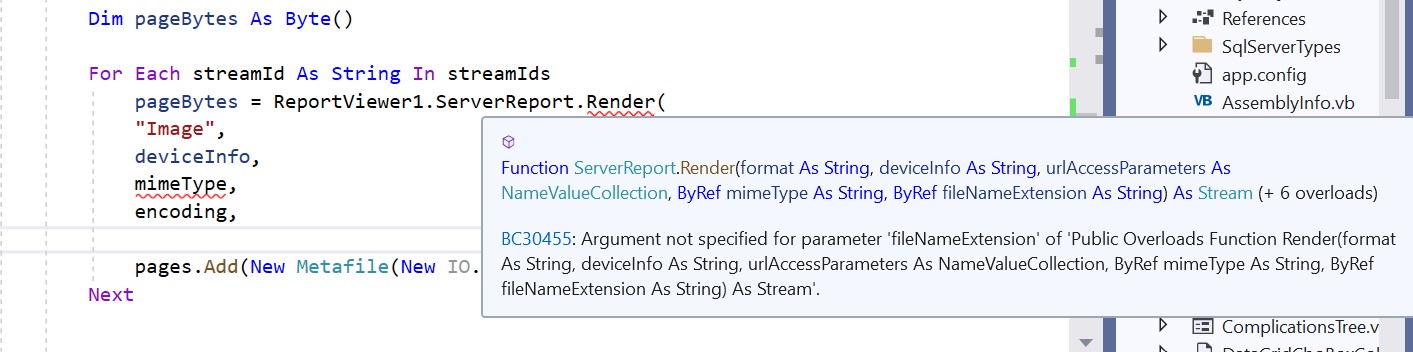

Missing fileNameExtension causes BC30455

This is by design for SSRS

Solution

Step1: Global variables

Private pages As New List(Of Metafile)
Private pageIndex As Integar = 0

Step 2: DeviceInfo (IMPORTANT)

Dim deviceInfo As String =
"<DeviceInfo>" &
" <OutputFormat>EMF</OutputFormat>" &
" <PageWidth>8.3in</PageWidth>" &
" <PageHeight>11.7in</PageHeight>" &
" <MarginTop>0.14in</MarginTop>" &
" <MarginLeft>0.22in</MarginLeft>" &
" <MarginRight>0.22in</MarginRight>" &
" <MarginBottom>0.14in</MarginBottom>" &
"</DeviceInfo>"

Step 3: Render first page +get stream IDs

Dim mimeType As String = ""
Dim encoding As String = ""
Dim fileExt As String = ""
Dim warnings() As Microsoft.Reporting.WinForms.Warning
Dim streamIds() As String = Nothing

pages.Clear()

Dim firstPage As Byte() =
ReportViewer1.ServerReport.Rendor(
"Image",
deviceInfo,
mimeType,
encoding,
extension,
streamIds,
warnings )
pages.Add(New Metafile(New IO.MemoryStream(firstPage)))

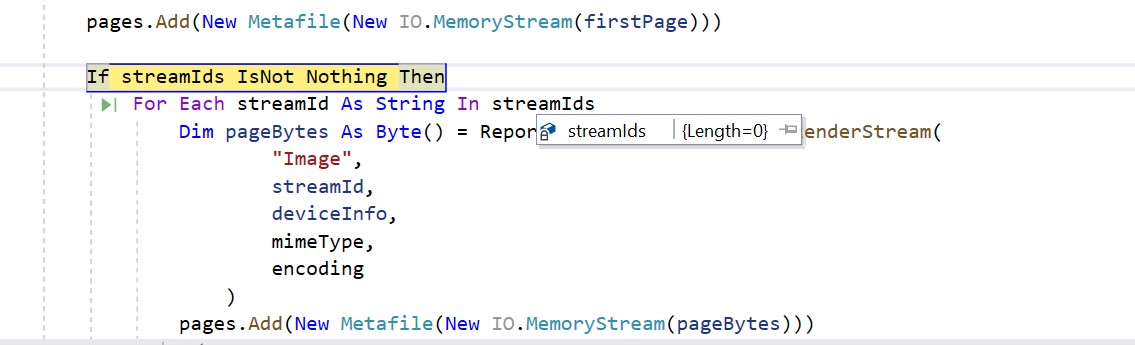

Step 4: Render remaining pages using RenderStream

If streamIds IsNot Nothing Then
	For Each streamId As String In streamIds
		Dim pageBytes As Byte() =
			ReportViewer1.ServerReport.RenderStream(
					"Image",
			 		deviceInfo,
 			 		mimeType,
			 		encoding,
					)
		pages.Add(New Metafile(New IO.MemoryStream(pageBytes)))
	Next
End if


Step 5: Print all pages

pageIndex = 0
Dim doc As New Printing.PrintDocument()
AddHandler doc.printPage, AddressOf PrintPageHandler
doc.Print()

Step 6: PrintPage handler (Do Not Modify)

Private Sub PrintPageHandler(
	sender As Object,
	e As Printing.PrintPageEventArgs)
 Dim page As Metafile = pages(pageIndex)
        e.Graphics.DrawImage(
			page,
			e.PageBounds
		)
		pageIndex +=1
		e.HasMorePages = (pageIndex < pages.Count)
End Sub

Please let us know if you require any further assistance we’re happy to help. If you found this information useful, kindly mark this as "Accept Answer".
