Logon Attemp Failed RDP to Azure VM

Hi Giovanny Hernandez

Thank you for reaching out on Microsoft Q&A. After reviewing your case, we identified that the issue is related to the Windows Server Core image used during the VM deployment.

Issue explanation:

This behavior occurred because the virtual machine was deployed using the Windows Server Datacenter – Azure Edition (Core) image. Server Core installations do not include the Windows Desktop Experience (GUI) and are intended to be managed through command-line tools, PowerShell, or remote management utilities, rather than a full graphical RDP session.

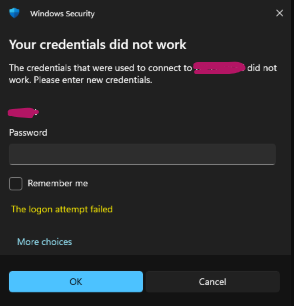

As a result, when attempting to connect via RDP, the connection fails and the Boot Diagnostics display appears stuck at LogonUI.exe / Ctrl+Alt+Del. This is expected behavior for Server Core and is not related to a password mismatch or any VM-level issue.

Microsoft provides two Windows Server installation options in Azure VM images:

1. Server Core

• No graphical user interface (GUI) or Windows Explorer
• Managed using CMD, PowerShell, or remote administration tools

2. Server with Desktop Experience

• Includes the full Windows graphical desktop
• Supports standard GUI-based RDP sessions

In this case, the selected image was Server Core, which does not support a full desktop login via RDP.

To resolve the issue, the VM must be redeployed using a Windows Server image that includes the Desktop Experience.

References:

What is the Server Core installation option in Windows Server?

Server Core vs Server with Desktop Experience install options

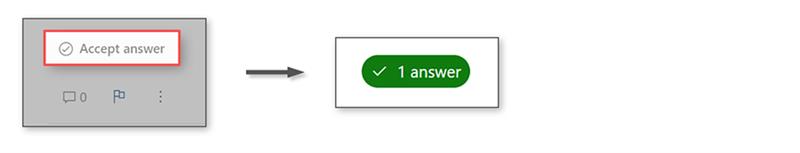

Hope this helps! As issue was resolved Could you please accept the answer and upvote it. So, it will be helpful to community as well.
