Migrate to Standard Public IP SKU fails

Question

Migrate to Standard Public IP SKU fails

Brendan 20

Azure is deprecating the Basic Public IP blocks and encouraging people to upgrade to the Standard SKU as detailed here. There is a migrate tool in the VPN which my Public IP is associated with which is documented here however this fails despite having all the pre-requisites in green. I've attached a screenshot.

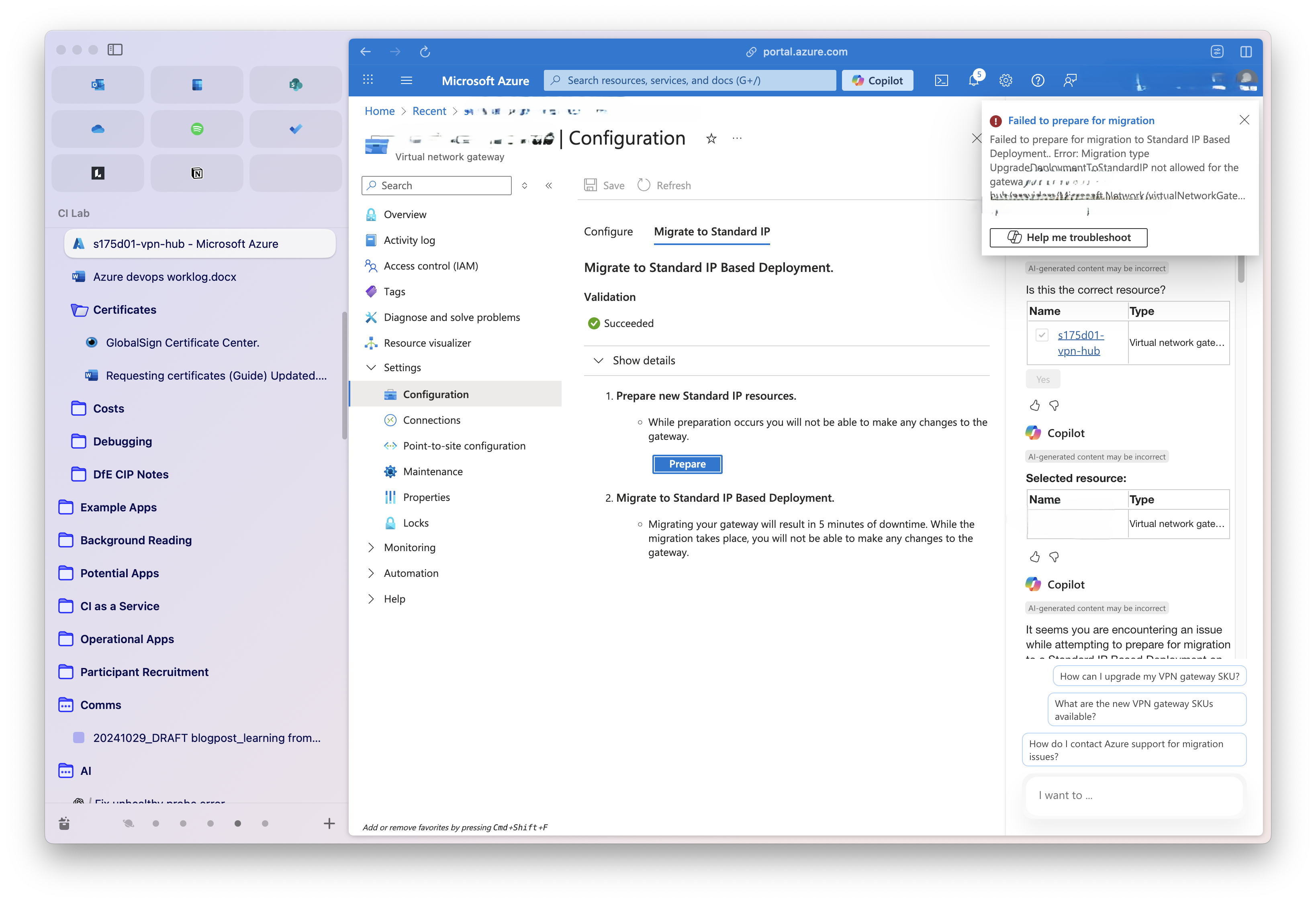

image (21)

Can someone suggest why this may be failing?

Pranitha Maddi 1,195 Reputation points Microsoft External Staff Moderator

2025-09-23T16:04:49.1166667+00:00
Hi Brendan,

Thanks for your question on the Microsoft Q&A portal!

To help us investigate and resolve this for you quickly, could you please provide a few additional details:

What is your current VPN Gateway SKU?

Is your VPN Gateway running in Active-Active or Active-Passive mode?

What is the Gateway Generation?

Is your VPN Gateway using legacy configurations, such as custom DNS or unsupported settings?

What is the subnet size for the gateway subnet? (Must have at least three available IP addresses; typically /27 or larger).

Has the Standard SKU migration option rolled out in your region? (Migration is being rolled out regionally).

Has the gateway been recently used for ExpressRoute or other linked resources that may block migration?

Is your Public IP dynamically assigned or static? (Static assignment is required for proper upgrade).

Have any manual changes or custom policies been applied to the VPN Gateway that might block migration?

Looking forward to your response so we can assist you further.

Thanks,

Pranitha
Brendan 20 Reputation points

2025-09-24T09:14:18.38+00:00
Hi both, thanks for responding.

Here are the details of the VPN Gateway - there is only one Public IP address assigned so I assume it is active-passive mode. It is also Generation 1 on a Standard SKU.

Is your VPN Gateway using legacy configurations, such as custom DNS or unsupported settings? - No

What is the subnet size for the gateway subnet? (Must have at least three available IP addresses; typically /27 or larger). - It has enough addresses avaialble (passed checks for migration)

Has the Standard SKU migration option rolled out in your region? (Migration is being rolled out regionally). - I presume so since it is offered in the Portal

Has the gateway been recently used for ExpressRoute or other linked resources that may block migration? - No

Is your Public IP dynamically assigned or static? (Static assignment is required for proper upgrade). - Static

Have any manual changes or custom policies been applied to the VPN Gateway that might block migration? - I have asked for a restriction on PIP creation policy to be lifted. There are no other known policies that would interfere, there are also no messages about policy violations in the error on upgrade - there is no further information other than what is displayed in the portal in the error JSON

Answer accepted by question author

1 additional answer

Your answer

Pranitha Maddi 1,195 Reputation points Microsoft External Staff Moderator

2025-09-23T16:04:49.1166667+00:00

Hi Brendan,

Thanks for your question on the Microsoft Q&A portal!

To help us investigate and resolve this for you quickly, could you please provide a few additional details:

What is your current VPN Gateway SKU?

Is your VPN Gateway running in Active-Active or Active-Passive mode?

What is the Gateway Generation?

Is your VPN Gateway using legacy configurations, such as custom DNS or unsupported settings?

What is the subnet size for the gateway subnet? (Must have at least three available IP addresses; typically /27 or larger).

Has the Standard SKU migration option rolled out in your region? (Migration is being rolled out regionally).

Has the gateway been recently used for ExpressRoute or other linked resources that may block migration?

Is your Public IP dynamically assigned or static? (Static assignment is required for proper upgrade).

Have any manual changes or custom policies been applied to the VPN Gateway that might block migration?

Looking forward to your response so we can assist you further.

Thanks,

Pranitha
Brendan 20 Reputation points

2025-09-24T09:14:18.38+00:00

Hi both, thanks for responding.

Here are the details of the VPN Gateway - there is only one Public IP address assigned so I assume it is active-passive mode. It is also Generation 1 on a Standard SKU.

Is your VPN Gateway using legacy configurations, such as custom DNS or unsupported settings? - No

What is the subnet size for the gateway subnet? (Must have at least three available IP addresses; typically /27 or larger). - It has enough addresses avaialble (passed checks for migration)

Has the Standard SKU migration option rolled out in your region? (Migration is being rolled out regionally). - I presume so since it is offered in the Portal

Has the gateway been recently used for ExpressRoute or other linked resources that may block migration? - No

Is your Public IP dynamically assigned or static? (Static assignment is required for proper upgrade). - Static

Have any manual changes or custom policies been applied to the VPN Gateway that might block migration? - I have asked for a restriction on PIP creation policy to be lifted. There are no other known policies that would interfere, there are also no messages about policy violations in the error on upgrade - there is no further information other than what is displayed in the portal in the error JSON

Answer 1

Hi @Brendan ,

UPDATE: Since you have Standard SKU VPN Gateway, please don't attempt to use migrate in portal at this time.

According to current timeline documentation there is no action needed. Your Standard SKU VPN Gateway will be automatically migrated before February 28, 2026 with no downtime expected.

Please see excerpt from documentation below:

Migrate a gateway SKU

Your legacy gateway will be migrated seamlessly from backend without any connectivity impact before February 28, 2026(extended from September 30, 2025). This is different from the initial approach of providing a migration path.

Excerpt from timeline below:

Event	Customer impact	Anticipated timelines	Customer action/Prerequisites	Documentation	Announcement links
Gateway SKU retirement: Standard and High Performance SKUs.	- New Standard/High Perf SKU gateway creations blocked Nov 2023. - Standard/High Perf SKU gateways will be migrated to VpnGw1/VpnGw2 on non-AZ regions and to VpnGw1AZ/VpnAz2 on AZ regions. - No downtime is expected for migration.	- May 2025 to Sep 2025: Standard/HighPerf SKU migration. - Feb 2026: Standard/HighPerf SKU retirement (extended from Sep 2025).	- No action required	Working with VPN Gateway legacy SKUs	Standard and HighPerf gateway SKU retirement

See this excerpt from FAQ:

Will my IP address change when my Legacy VPN gateway SKU (Standard or HighPerformance) is migrated to a Non-AZ SKU (VpnGw1 or VpnGw2)? No, the IP address will not change when the Legacy SKU is migrated to a Non-AZ SKU. After SKU migration, you can choose to migrate the Basic SKU IP address to Standard SKU IP address through a customer controlled portal experience. For more information about Basic SKU IP migration, see About migrating a Basic SKU public IP address to Standard SKU for VPN Gateway article.

The deadline for Basic SKU Public IP when used with VPN Gateway is end of January 2026, so there is plenty of time.

NOTE: They just extended the migration deadline to February 28, 2026 within past week, however, they didn't change the "end of January 2026" text for Basic SKU IP deadline. I assume they are making exception for Standard SKU VPN Gateway.

Please click Accept Answer and upvote if the above was helpful.

Thanks.

-TP

Answer 2

Hi Brendan,

Thank you for sharing the details and screenshots.

AS you are trying to migrate your VPN Gateway (Standard SKU, Generation 1, active-passive) from a Basic SKU Public IP to a Standard SKU Public IP using the Azure Portal migration tool. Even though all prerequisites are passing (“green”), you get the error:

Failed to prepare for migration to Standard IP Based Deployment. Error: Migration type UpgradeDeploymentToStandardIP not allowed for the gateway.

This is because:

The “UpgradeDeploymentToStandardIP not allowed” error typically means the migration preview tool is not yet fully supported for certain gateway SKUs (including Standard, HighPerformance, sometimes legacy configurations, or gateways in regions where the rollout isn’t complete).

Standard SKU VPN gateways will be migrated to newer consolidated SKUs automatically as part of Azure’s retirement and consolidation process. So no manual action is required; Azure will handle migration for you before the retirement deadline.

You can always check for the latest status and steps in the Microsoft documentation:https://learn.microsoft.com/en-us/azure/vpn-gateway/basic-public-ip-migrate-howto?tabs=portal

Here are the further steps to perform:

If the official migration tool isn’t working for your gateway, there is no need to worry. Azure will automatically migrate Standard VPN Gateways with Basic SKU public IPs to Standard SKU public IPs before the end-of-support in January 2026.
Do not delete or recreate your gateway; just monitor your gateway and await further updates from Microsoft via the Azure portal (look out for retirement or upgrade notifications).

Useful Microsoft documents:

I hope this helps to clarify the issue.

Thanks!
