How can I tell in C# or VB.NET if a low-level hook is blocked by a high-integrity process?

Question

How can I tell in C# or VB.NET if a low-level hook is blocked by a high-integrity process?

jacky Perpète 146

Hello,

In a VB.NET application, I'm using a low-level hook to manage mouse movements on the screen.

Windows' built-in security measures prevent the low-level mouse hook from interacting with, for example, the Task Manager.

My program no longer receives mouse coordinates when the Windows Task Manager has focus.

To work around this situation, I don't want to run my application with elevated privileges as an administrator or use a signing certificate.

Is it possible to detect when my application's mouse hook is blocked by a high-integrity process? (API?)

RLWA32 48,896 Reputation points

2025-05-04T11:29:31.23+00:00

Proof of concept demo written in C++. The monitoring process is not running with elevated privileges and is not a UIAccess application.

jacky Perpète 146

Thank you for your comment.

What principle did you use to create the program?

Here's a solution (perhaps not the best one) that I just tested.

In my program, I added a dispatcherTimer whose event performs the following steps:

Retrieves a handle to the window that has focus (GetForegroundWindow API)
Retrieves the thread ID of this window (GetWindowThreadProcessId API)
Creates the process associated with the window
Retrieves the first thread of the process
Reads the thread's priority level Throws an error if the thread is higher than the application thread

Here's the code in the dispatcherTimer event.


Private Sub dspHook_Tick(ByVal sender As Object, ByVal e As EventArgs)
    Dim foregroundProcessId As Integer
    'Récupère un handle vers la fenêtre qui a le focus
    Dim foregroundWindowHandle As IntPtr = GetForegroundWindow()
    'Récupère l'identifiant du thread de la fenêtre
    GetWindowThreadProcessId(foregroundWindowHandle, foregroundProcessId)
    'Crée le processus associé à la fenêtre
    Dim procforeground As Process = Process.GetProcessById(foregroundProcessId)
    'Récupére le premier thread du processus
    Dim theThread As ProcessThread = procforeground.Threads.Item(0)
    'Lecture du niveau de priorité du thread
    'Va en erreur si le thread est plus élévé que le thread de l'application
    Try
        Dim priority As ThreadPriorityLevel = theThread.PriorityLevel
        lblTest.Content = "non-blocking priority"
    Catch ex As Exception
        lblTest.Content = "blocking priority"
    End Try
End Sub

RLWA32 48,896 Reputation points

2025-05-05T08:26:43.82+00:00

What principle did you use to create the program?

I used WinEvents. Refer to SetWinEventHook function to register the callback function with WINEVENT_OUTOFCONTEXT and set the hook to receive only EVENT_SYSTEM_FOREGROUND.

The system invoked the WINEVENTPROC callback function whenever the foreground window changes. No timer was needed.

In the callback function I obtained the process ID of the foreground window from the HWND parameter with GetWindowThreadProcessId, obtained a process handle with OpenProcess specifying PROCESS_QUERY_LIMITED_INFORMATION, obtained the process token with OpenProcessToken specifying only TOKEN_QUERY and then obtained the process integrity level by calling GetTokenInformation specifying TokenIntegrityLevel. The returned structure contains an integrity level SID for the process which was compared to the well-known SID for medium integrity. I chose this method because UIPI is based on process integrity levels.
RLWA32 48,896 Reputation points

2025-05-09T09:03:00.8066667+00:00

@jacky Perpète, I was wondering if you have decided how to proceed. Any new developments on this issue?
jacky Perpète 146 Reputation points

2025-05-09T15:04:49.6666667+00:00

@RLWA32 , I followed your previous instructions to use the APIs mentioned in my WPF application.

I'm having trouble using the GetTokenInformation API.

I can't extract the integrity level information (Program Error).

All the examples I've tested don't work.

Currently, I'm using WinEvents with the SetWinEventHook function and the part of the program described previously (process thread and error handling).

I can still do some more testing.

Thank you for your follow-up.
Viorel 121.6K Reputation points

2025-05-09T15:31:02.8933333+00:00

Maybe it is possible to assume that any other window, even not in foreground, belongs to a privileged program.
RLWA32 48,896 Reputation points

2025-05-09T19:29:35.4566667+00:00

@jacky Perpète,

I cobbled together a VB console application the compares process integrity levels. I have no doubt that the code can be restructured and modernized but I think it will be helpful to you.

Initial version deleted. See updated code in following comment.

RLWA32 48,896

Updated code example -

Module Module1

    Public Enum TOKEN_INFORMATION_CLASS
        TokenUser = 1
        TokenGroups
        TokenPrivileges
        TokenOwner
        TokenPrimaryGroup
        TokenDefaultDacl
        TokenSource
        TokenType
        TokenImpersonationLevel
        TokenStatistics
        TokenRestrictedSids
        TokenSessionId
        TokenGroupsAndPrivileges
        TokenSessionReference
        TokenSandBoxInert
        TokenAuditPolicy
        TokenOrigin
        TokenElevationType
        TokenLinkedToken
        TokenElevation
        TokenHasRestrictions
        TokenAccessInformation
        TokenVirtualizationAllowed
        TokenVirtualizationEnabled
        TokenIntegrityLevel
        TokenUIAccess
        TokenMandatoryPolicy
        TokenLogonSid
        TokenIsAppContainer
        TokenCapabilities
        TokenAppContainerSid
        TokenAppContainerNumber
        TokenUserClaimAttributes
        TokenDeviceClaimAttributes
        TokenRestrictedUserClaimAttributes
        TokenRestrictedDeviceClaimAttributes
        TokenDeviceGroups
        TokenRestrictedDeviceGroups
        TokenSecurityAttributes
        TokenIsRestricted
        TokenProcessTrustLevel
        TokenPrivateNameSpace
        TokenSingletonAttributes
        TokenBnoIsolation
        TokenChildProcessFlags
        TokenIsLessPrivilegedAppContainer
        TokenIsSandboxed
        TokenOriginatingProcessTrustLevel
        MaxTokenInfoClass  'MaxTokenInfoClass should always be the last Enum
    End Enum

    <DllImport("kernel32.dll", CallingConvention:=CallingConvention.StdCall, ExactSpelling:=True, SetLastError:=True)>
    Public Function OpenProcess(DesiredAccess As UInteger, Inheritable As Boolean, ProcessId As Integer) As SafeProcessHandle

    End Function

    <DllImport("advapi32.dll", CallingConvention:=CallingConvention.StdCall, ExactSpelling:=True, SetLastError:=True)>
    Public Function OpenProcessToken(ProcessHandle As SafeProcessHandle, DesiredAccess As UInteger, <Out> ByRef TokenHandle As SafeAccessTokenHandle) As Boolean

    End Function

    <DllImport("advapi32.dll", CallingConvention:=CallingConvention.StdCall, ExactSpelling:=True, SetLastError:=True)>
    Public Function GetTokenInformation(handle As SafeAccessTokenHandle,
            TokenInformationClass As TOKEN_INFORMATION_CLASS,
            TokenInformation As IntPtr,
            TokenInformationLength As Integer,
            ByRef ReturnLength As Integer) As Boolean
    End Function

    <StructLayout(LayoutKind.Sequential)>
    Public Structure SID_AND_ATTRIBUTES
        Public PSID As IntPtr
        Public Attributes As UInteger
    End Structure

    <StructLayout(LayoutKind.Sequential)>
    Public Class TOKEN_MANDATORY_LABEL
        Public Label As SID_AND_ATTRIBUTES
        <MarshalAs(UnmanagedType.ByValArray, SizeConst:=SECURITY_MAX_SID_SIZE)>
        Public Buffer As Byte() ' Provide buffer to avoid calling GetTokenInformation twice
    End Class

    Const SECURITY_MAX_SID_SIZE As Integer = 68

    Public Function GetIntegrityOfProcess(ProcessId As Integer) As SecurityIdentifier
        Dim PROCESS_QUERY_LIMITED_INFORMATION As Integer = &H1000
        Dim TOKEN_QUERY As Short = &H8
        Dim ti As IntPtr = IntPtr.Zero

        Try
            Using ProcessHandle As SafeProcessHandle = OpenProcess(PROCESS_QUERY_LIMITED_INFORMATION, False, ProcessId)
                Dim TokenHandle As New SafeAccessTokenHandle(IntPtr.Zero)
                Try
                    If OpenProcessToken(ProcessHandle, TOKEN_QUERY, TokenHandle) Then
                        Dim len = Marshal.SizeOf(Of TOKEN_MANDATORY_LABEL)()

                        ti = Marshal.AllocHGlobal(len)
                        If GetTokenInformation(TokenHandle, TOKEN_INFORMATION_CLASS.TokenIntegrityLevel, ti, len, len) Then
                            Dim label As TOKEN_MANDATORY_LABEL = New TOKEN_MANDATORY_LABEL()
                            Marshal.PtrToStructure(ti, label)
                            Dim sid As SecurityIdentifier = New SecurityIdentifier(label.Label.PSID)
                            Return sid
                        Else
                            Throw New Win32Exception(Marshal.GetLastWin32Error(), "GetTokenInformation failed")
                        End If
                    Else
                        Throw New Win32Exception(Marshal.GetLastWin32Error(), "OpenProcessToken failed")
                    End If
                Finally
                    TokenHandle.Dispose()
                End Try
            End Using

        Finally
            If ti <> IntPtr.Zero Then
                Marshal.FreeHGlobal(ti)
            End If
        End Try
    End Function

    Sub Main()
        Try
            Dim processIntegrity = GetIntegrityOfProcess(Process.GetCurrentProcess().Id)

            Dim taskmanagerIntegrity = GetIntegrityOfProcess(Process.GetProcessesByName("TaskMgr")(0).Id)

            Dim result = processIntegrity.CompareTo(taskmanagerIntegrity)

            If result < 0 Then
                Console.WriteLine("Process integrity is less than TaskManger integrity")
            ElseIf result = 0 Then
                Console.WriteLine("Process integrity is same as TaskManager integrity")
            Else
                Console.WriteLine("Process integrity is greater than TaskManager integrity")
            End If
        Catch ex As Exception
            Console.WriteLine($"Caught exception {ex.Message}")
        End Try

    End Sub

End Module

I think this is a better version. :)

jacky Perpète 146

@RLWA32 ,with your example, I was able to correctly use the GetTokenInformation API.Now it works for me.

Thank you.

Here is the result obtained during testing:

GetTokenInformation(tokenHandle, TokenIntegrityLevel, integrityLevelPtr, returnLength, returnLength)
Dim label As TOKEN_MANDATORY_LABEL = New TOKEN_MANDATORY_LABEL()
Marshal.PtrToStructure(integrityLevelPtr, label)
Dim sid As SecurityIdentifier = New SecurityIdentifier(label.Label.PSID)

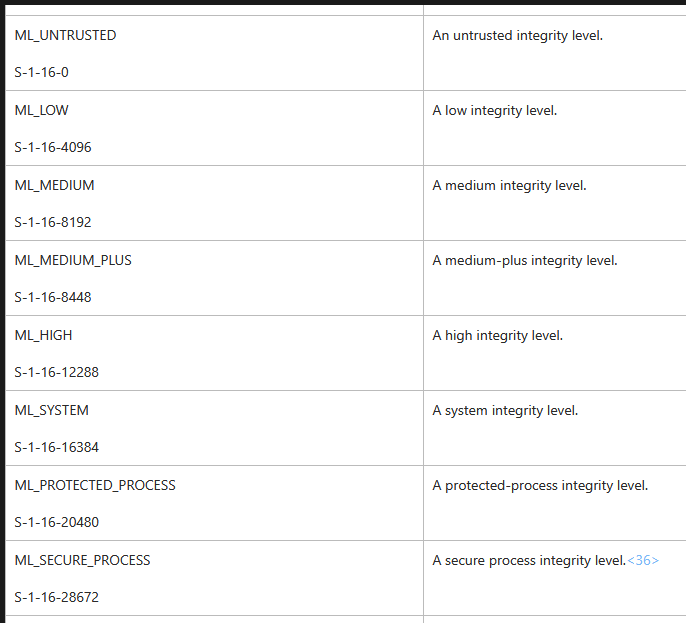

Select Case sid.ToString
    Case "S-1-16-0"
        'Unknown Integrity Level
    Case "S-1-16-4096"
        'Low Integrity Level
    Case "S-1-16-8192"
         'Medium Integrity Level
    Case "S-1-16-12288"
        'High Integrity Level
    Case "S-1-16-16384"
        'System Integrity Level'
    Case Else
        'Custom Integrity Level'
End Select

RLWA32 48,896 Reputation points

2025-05-12T08:12:17.84+00:00

I'm glad you are having success.

I suggest you read How can I check the integrity level of my process?. Pay particular attention to the paragraph that discusses checking for ranges rather than an exact match. Also, From the documentation of Well-Known SID Structures

Accepted answer

0 additional answers

Your answer

RLWA32 48,896 Reputation points

2025-05-04T11:29:31.23+00:00

Proof of concept demo written in C++. The monitoring process is not running with elevated privileges and is not a UIAccess application.
jacky Perpète 146 Reputation points

2025-05-05T07:56:18.0333333+00:00

Thank you for your comment.

What principle did you use to create the program?

Here's a solution (perhaps not the best one) that I just tested.

In my program, I added a dispatcherTimer whose event performs the following steps:

Retrieves a handle to the window that has focus (GetForegroundWindow API)

Retrieves the thread ID of this window (GetWindowThreadProcessId API)

Creates the process associated with the window

Retrieves the first thread of the process

Reads the thread's priority level Throws an error if the thread is higher than the application thread

Here's the code in the dispatcherTimer event.

Private Sub dspHook_Tick(ByVal sender As Object, ByVal e As EventArgs) Dim foregroundProcessId As Integer 'Récupère un handle vers la fenêtre qui a le focus Dim foregroundWindowHandle As IntPtr = GetForegroundWindow() 'Récupère l'identifiant du thread de la fenêtre GetWindowThreadProcessId(foregroundWindowHandle, foregroundProcessId) 'Crée le processus associé à la fenêtre Dim procforeground As Process = Process.GetProcessById(foregroundProcessId) 'Récupére le premier thread du processus Dim theThread As ProcessThread = procforeground.Threads.Item(0) 'Lecture du niveau de priorité du thread 'Va en erreur si le thread est plus élévé que le thread de l'application Try Dim priority As ThreadPriorityLevel = theThread.PriorityLevel lblTest.Content = "non-blocking priority" Catch ex As Exception lblTest.Content = "blocking priority" End Try End Sub
RLWA32 48,896 Reputation points

2025-05-05T08:26:43.82+00:00

What principle did you use to create the program?

I used WinEvents. Refer to SetWinEventHook function to register the callback function with WINEVENT_OUTOFCONTEXT and set the hook to receive only EVENT_SYSTEM_FOREGROUND.

The system invoked the WINEVENTPROC callback function whenever the foreground window changes. No timer was needed.

In the callback function I obtained the process ID of the foreground window from the HWND parameter with GetWindowThreadProcessId, obtained a process handle with OpenProcess specifying PROCESS_QUERY_LIMITED_INFORMATION, obtained the process token with OpenProcessToken specifying only TOKEN_QUERY and then obtained the process integrity level by calling GetTokenInformation specifying TokenIntegrityLevel. The returned structure contains an integrity level SID for the process which was compared to the well-known SID for medium integrity. I chose this method because UIPI is based on process integrity levels.
RLWA32 48,896 Reputation points

2025-05-09T09:03:00.8066667+00:00

@jacky Perpète, I was wondering if you have decided how to proceed. Any new developments on this issue?
jacky Perpète 146 Reputation points

2025-05-09T15:04:49.6666667+00:00

@RLWA32 , I followed your previous instructions to use the APIs mentioned in my WPF application.

I'm having trouble using the GetTokenInformation API.

I can't extract the integrity level information (Program Error).

All the examples I've tested don't work.

Currently, I'm using WinEvents with the SetWinEventHook function and the part of the program described previously (process thread and error handling).

I can still do some more testing.

Thank you for your follow-up.
Viorel 121.6K Reputation points

2025-05-09T15:31:02.8933333+00:00

Maybe it is possible to assume that any other window, even not in foreground, belongs to a privileged program.
RLWA32 48,896 Reputation points

2025-05-09T19:29:35.4566667+00:00

@jacky Perpète,

I cobbled together a VB console application the compares process integrity levels. I have no doubt that the code can be restructured and modernized but I think it will be helpful to you.

Initial version deleted. See updated code in following comment.
jacky Perpète 146 Reputation points

2025-05-12T06:53:46.73+00:00

@RLWA32 ,with your example, I was able to correctly use the GetTokenInformation API.Now it works for me.

Thank you.

Here is the result obtained during testing:

GetTokenInformation(tokenHandle, TokenIntegrityLevel, integrityLevelPtr, returnLength, returnLength) Dim label As TOKEN_MANDATORY_LABEL = New TOKEN_MANDATORY_LABEL() Marshal.PtrToStructure(integrityLevelPtr, label) Dim sid As SecurityIdentifier = New SecurityIdentifier(label.Label.PSID) Select Case sid.ToString Case "S-1-16-0" 'Unknown Integrity Level Case "S-1-16-4096" 'Low Integrity Level Case "S-1-16-8192" 'Medium Integrity Level Case "S-1-16-12288" 'High Integrity Level Case "S-1-16-16384" 'System Integrity Level' Case Else 'Custom Integrity Level' End Select
RLWA32 48,896 Reputation points

2025-05-12T08:12:17.84+00:00

I'm glad you are having success.

I suggest you read How can I check the integrity level of my process?. Pay particular attention to the paragraph that discusses checking for ranges rather than an exact match. Also, From the documentation of Well-Known SID Structures

Answer 1

RLWA32 48,896

You could use WinEvents to track changes to the foreground window. The event callback could determine if the process owning the foreground window has an integrity level greater than medium. If it does, the assumption would be that your low level mouse hook will not be called until the foreground window changes to a lower integrity level process.
