Dear Team,
We have configured SCCM PXE on one of our DP and made the changes into the DHCP for port 66 and 67.

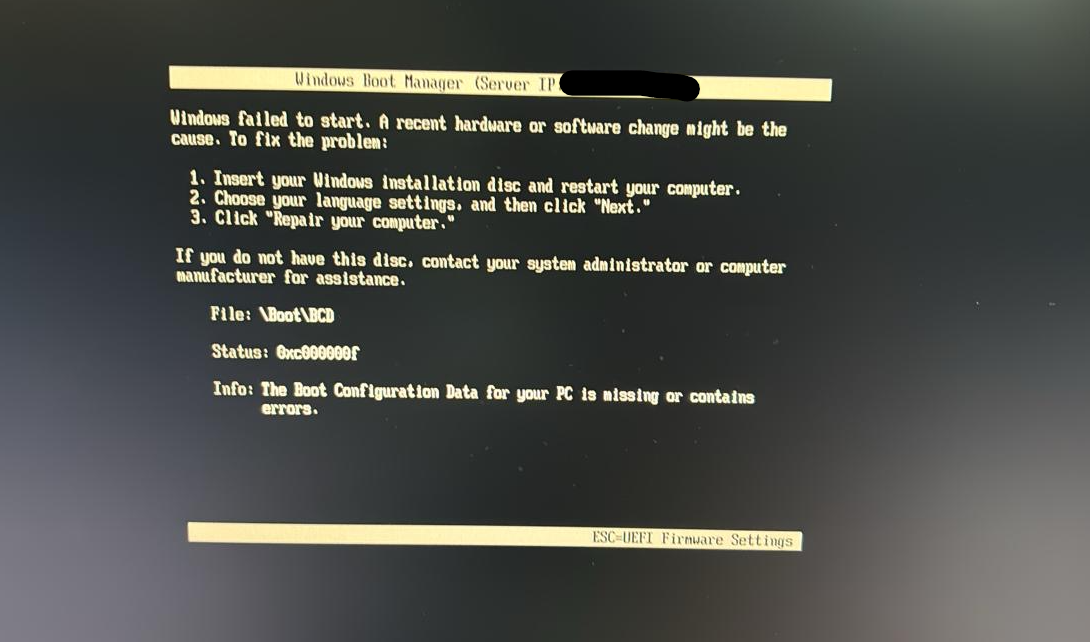

This is the first time we are going to build a PC over the network. While attempting to test the device, we are getting the below error regarding the BCD.
The device is reaching out to our SCCM DP as you can see Server IP in the screenshot however its not moving from this step.
Is it due to the port blockage from SCCM to client or any other configuration needs to be in place ?
Please share your expert advice here.
Hi,
Hope everything is going well.
1,Please check the smspxe.log on the server to see if there is any further information.
2.Check if all components like Boot images, OS-Images, Task-Sequences and Announcements are published to all distribution points in the Content Library.
3.Update the Network Driver to your Boot images. Then redistributed both updated boot images (x86 and x64) to the PXE-enabled DP and check if the redistribution succeeded.
Similar threads for your reference:
SCCM Error Code 0xc000000f boot configuration data missing
Configuration Manager PXE boot fail after boot image update.
Feel free to contact me if you have any concerns/queries.
Best regards,
Simon
If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
After the way you tag questions on Q&A is updated, for any "Microsoft Configuration Manager" related problem, you can tag it with "Microsoft Intune", and then "Microsoft Configuration Manager" as the child tag.
Hi,
Hope everything goes well. We haven't heard from you for a few days and would like to know the current status of the problem. If there is any chance to try above suggestions? If there is any other assistance we can provide, please feel free to let us know, we will do our best to help you.
Thanks for your time.
Best regards,
Simon
Thanks for sharing your valuable inputs.
I was off for few days and just came back so will need to recheck everything and try to build the test again. Will follow the articles you have shared and update you accordingly.
Regards,
Atif
Hi,
Look forward to hearing from you. Have a nice day!
Best regards,
Simon
Hi @Simon Ren-MSFT ,
Hope you are doing well.
We are still facing the same issue even after validating all the mentioned above steps.
WDS service is corrupted that's what we discovered today during troubleshooting call.
What steps we can take here to resolve this issue ?
