Azure VM (linux centos 8) cannot mount disks

Hi mmac,

Welcome to the Microsoft Q&A Platform! Thank you for asking your question here.

The error message you're encountering indicates that there is an issue with the iSCSI connection, specifically related to port 3260, which is the default port used for iSCSI communication.

I would recommend the following troubleshooting steps:

• Since the error message suggests that port 3260 may already be in use, you can check for any processes that might be using this port:

   *sudo netstat -tuln | grep 3260*


• Even though you've turned off the firewall and SELinux, it's worth double-checking that there are no lingering rules that could be affecting the connection.
• Use the following command to check for any active firewall rules: sudo iptables -L -n
• Ensure that SELinux is indeed disabled by running: sestatus

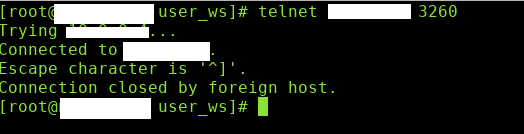

• You can test connectivity to the iSCSI target using telnet or nc (netcat) to see if you can reach the target on port 3260:

   *telnet <IP_ADDRESS_OF_ISCSI_TARGET> 3260*


• If everything seems fine, try using the iscsiadm command to reconnect to the target.
• Sometimes, restarting the iSCSI service can help resolve port conflicts. If you have any further queries, do let us know. If the answer is helpful, please click "Accept Answer" and "Upvote it."

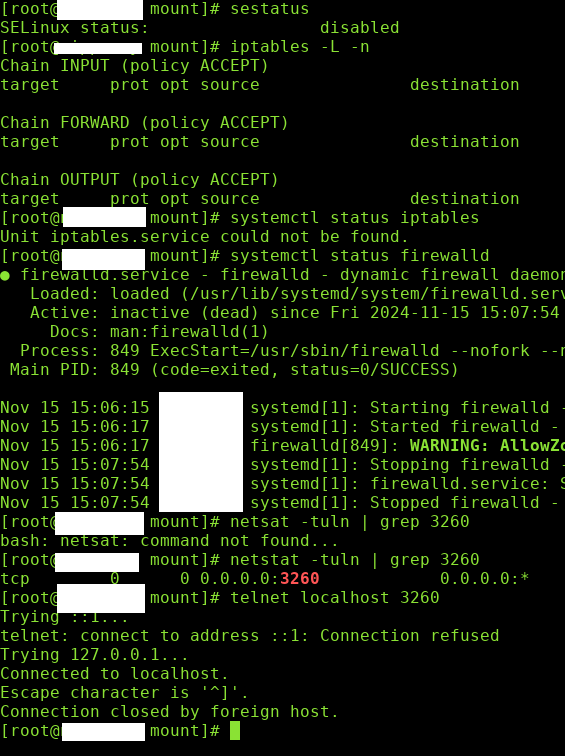

Still no joy.

I think this topic is getting off course. What i am trying to do is mount the backup volumes on a CentOS 8 server. I am getting the error message after i download and run the python script from the backup restore:

"We are unable to communicate via the port 3260 on this machine since it is being used by ISCSI target server or any other application. Please unblock the port or use another machine where the port is open for communication"

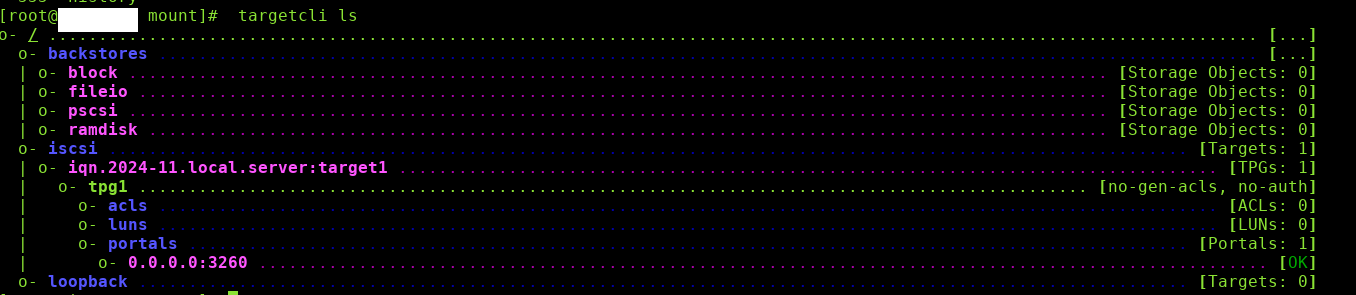

I started to configure iscsi and make sure port 3260 is available as this seemed like a logical path. Now it seems that people are getting me to create luns, logical volumes, etc. Which i dont think is needed. The script just wants to mount the retore point volumes. Which should not require any of the advanced configuration that is mentioned.

Hi @mmac,

Thank you for your patience. In addition to @Mounika Reddy Anumandla , I reproduced the same scenario in my tenant, and I was able to confirm that my connection was successful. I will clearly guide you through the steps that you can follow to resolve the issue

Create backing storage device:

Before we start working on our iSCSI target, we need a backend storage and create partition.

Physical Volume: sudo pvcreate /dev/sdb1

Volume group: vgcreate vg_iscsi /dev/sdb1

Logical Volume: sudo lvcreate -l 100%FREE -n lv_iscsi vg_iscsi

Install targetcli rpm: sudo yum install targetcli -y

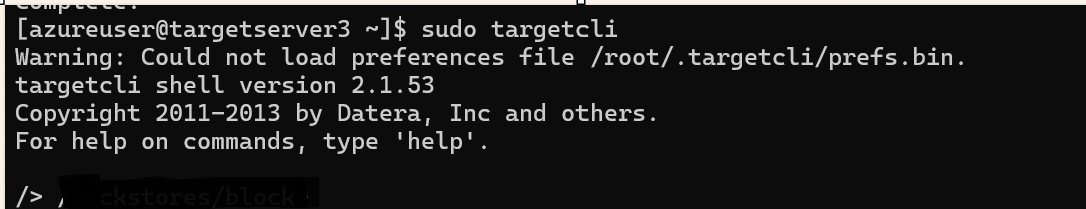

Managing iSCSI targets with targetcli: sudo targetcli

Now use an existing logical volume (/dev/vg_iscsi/lv_iscsi) as a block-type backing store for storage object scsi_disk1_server.

/backstores/block> create scsi_disk1_server /dev/vg_iscsi/lv_iscsi Creating iSCSI targets: cd /iscsi

we will now create an iSCSI target: create wwn=iqn.2018-12.com.example:servers.

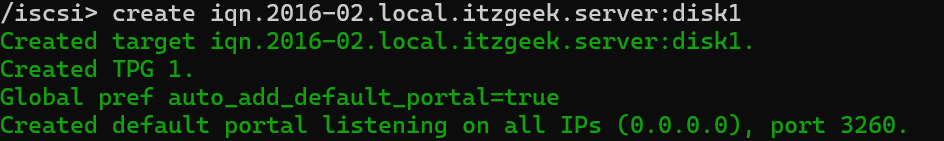

I am taking on my actions: create iqn.2016-02.local.itzgeek.server:disk1

Adding ACLs:

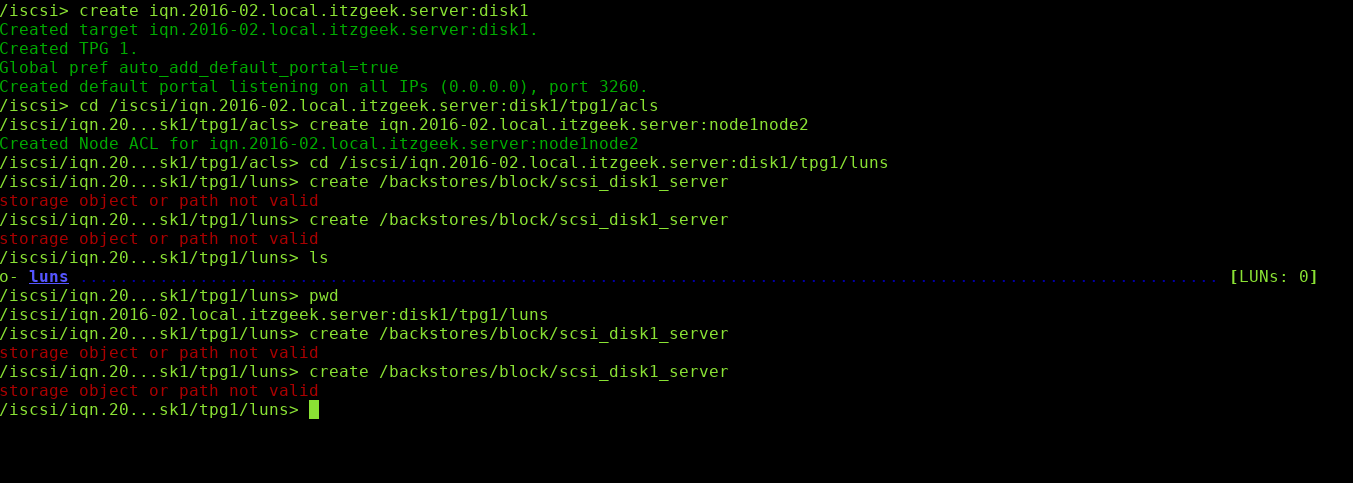

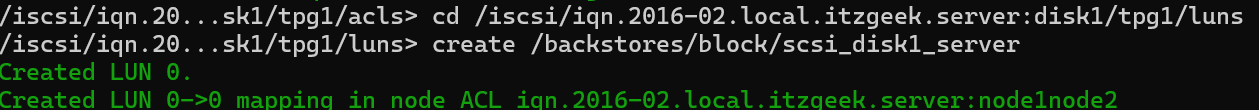

Adding LUNs to the iSCSI target:

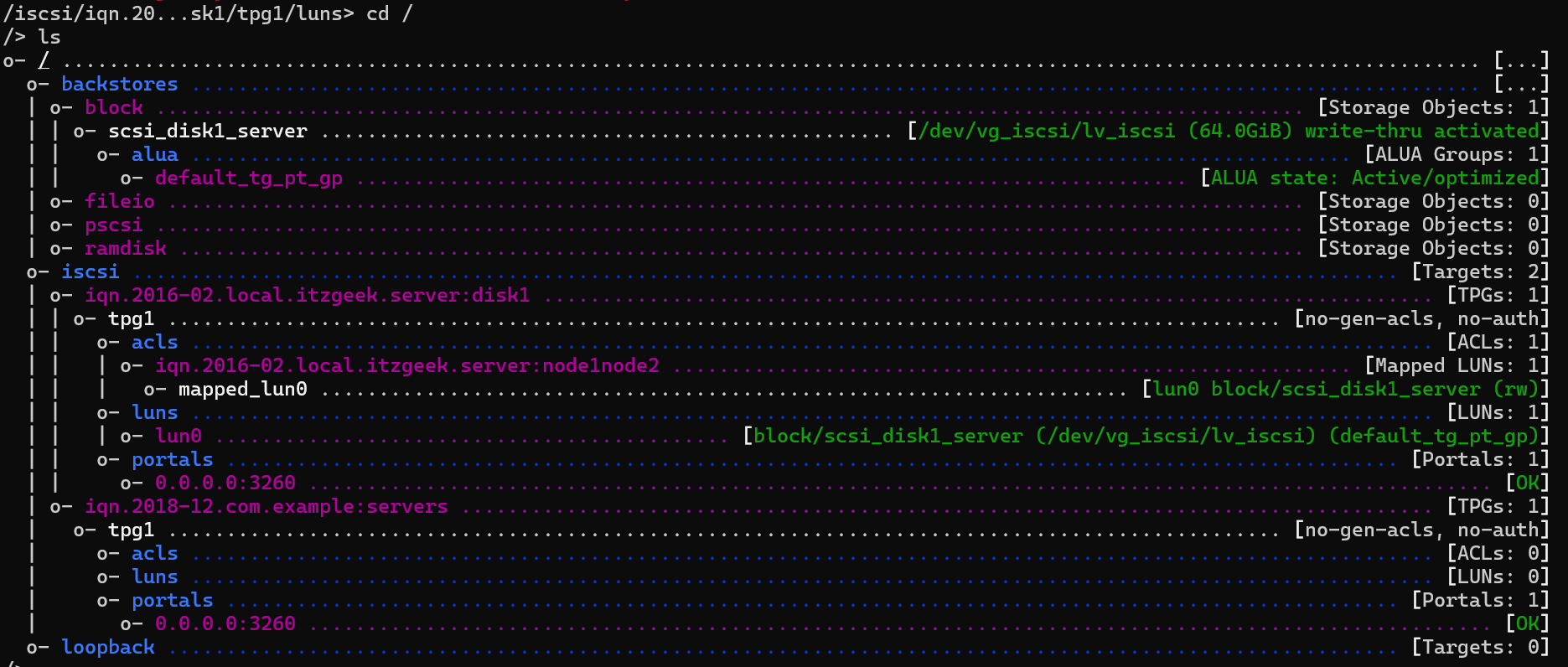

Verify the target server configuration and saveconfig and exit.

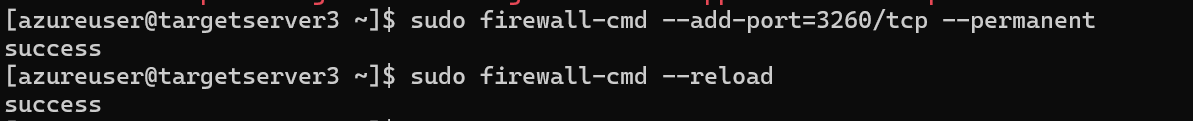

Update Firewall:

Start and enable target service:

Setting Up the iSCSI Initiator in target server: sudo yum -y install iscsi-initiator-utils

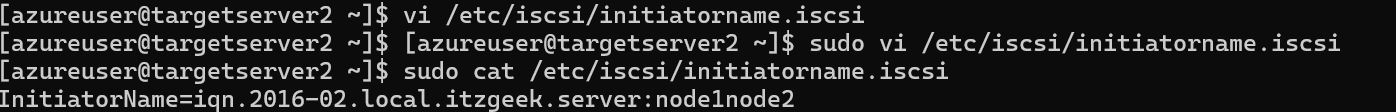

Setting the iSCSI Initiatorname: vi /etc/iscsi/initiatorname.iscsi -update the file with the ACL name we used on the iSCSI target

Discover the LUNs: sudo iscsiadm --mode discovery --type sendtargets --portal 10.0.0.6 --discover 10.0.0.6:3260,1 iqn.2016-02.local.itzgeek.server:disk1

After the discovery below database is updated:

sudo ls -l /var/lib/iscsi/nodes

sudo ls -l /var/lib/iscsi/send_targets/10.0.0.6,3260/

Making the connection: sudo iscsiadm --mode node --targetname iqn.2016 02.local.itzgeek.server:disk1 --login

If you have any further queries, do let us know.
